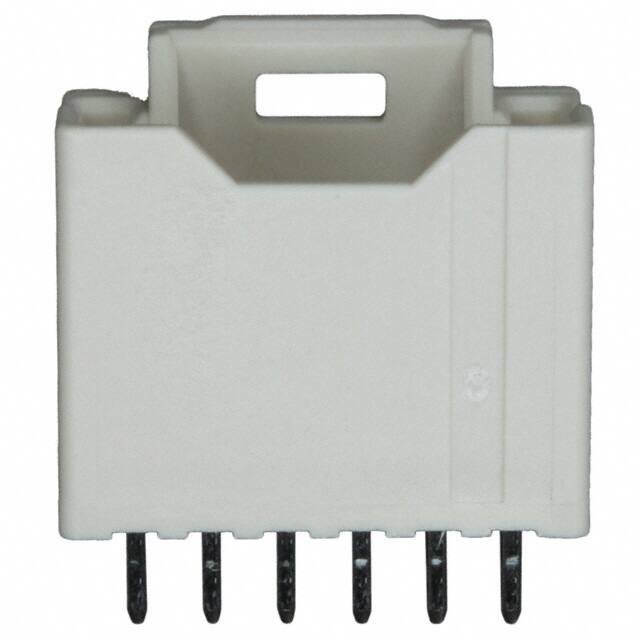

5016451220

Specifications

JESD-609 Kodu

e3

Seri

iGrid 501645

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Ul Flammability Code

94V-0

Contact Type

Male Pin

Row Spacing Mating

0.079 (2.00mm)

Body Depth

0.453 inch

Dielectric Withstanding Voltage

1400VAC V

Iec Conformance

NO

Board Mounting Option

PEG

Rated Current Signal

2A

Shrouding

Shrouded - 4 Wall

Style

Board to Cable/Wire

Insulation Resistance

1000000000Ohm

Parça Durumu

Active

Mil Conformance

NO

Kurşunsuz Kodu

yes

Operating Temperature Max

85°C

Pcb Contact Pattern

RECTANGULAR

Din Conformance

NO

Yayın Yılı

2005

Fastening Type

Latch Holder

Özellikler

Board Guide

Body Length Or Diameter

0.551 inch

Contact Materials

Brass

Durability

30 Cycles

Fabrika Tedarik Süresi

5 Weeks

Ambalaj

Tray

Mating Contact Pitch

0.079 inch

Contact Finish Mating

Tin

Number Of Pcb Rows

2

Connector Type

Header

Polarization Key

POLARIZED HOUSING

Terminal

Solder

Reliability

COMMERCIAL

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.472 12.00mm

Insulation Color

Natural

Sıra Sayısı

2
