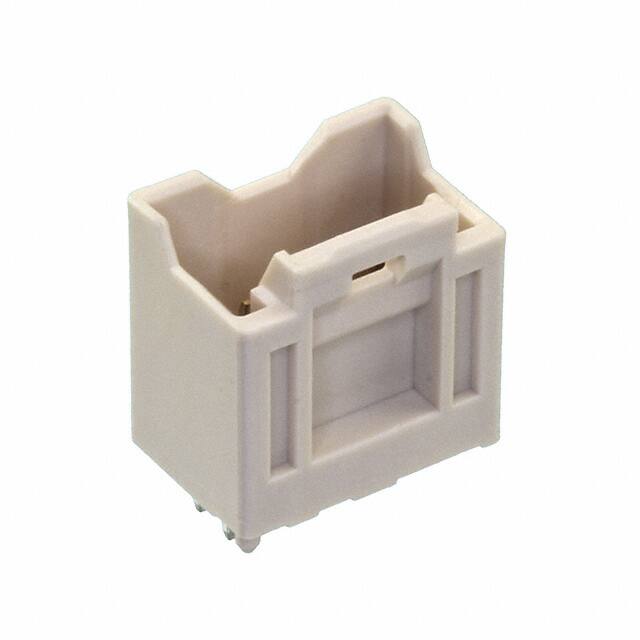

5016451020

Specifications

Number Of Positions Loaded

All

Insulation Materials

Polyamide (PA66), Nylon 6/6, Glass Filled

Filter Feature

NO

Pozisyon Sayısı

10

Mixed Contacts

NO

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Contact Length Post

0.126 3.20mm

Contact Shape

Square

Mounting Option1

LOCKING

Terminal

Solder

Number Of Pcb Rows

2

Connector Type

Header

Polarization Key

POLARIZED HOUSING

Reliability

COMMERCIAL

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.472 12.00mm

Insulation Color

Natural

Number Of Conductors

ONE

Sıra Sayısı

2

Pitch Mating

0.079 2.00mm

Reference Standard

UL

Montaj Tipi

Through Hole

Fabrika Tedarik Süresi

6 Weeks

Durability

30 Cycles

Mating Contact Pitch

0.079 inch

Ambalaj

Tray

Contact Finish Mating

Tin

Özellikler

Board Guide

Contact Materials

Brass

Parça Durumu

Active

Mil Conformance

NO

Operating Temperature Max

85°C

Pcb Contact Pattern

RECTANGULAR

Kurşunsuz Kodu

yes

Din Conformance

NO

Yayın Yılı

2005

Fastening Type

Latch Holder

Dielectric Withstanding Voltage

1400VAC V

Iec Conformance

NO

Board Mounting Option

PEG
