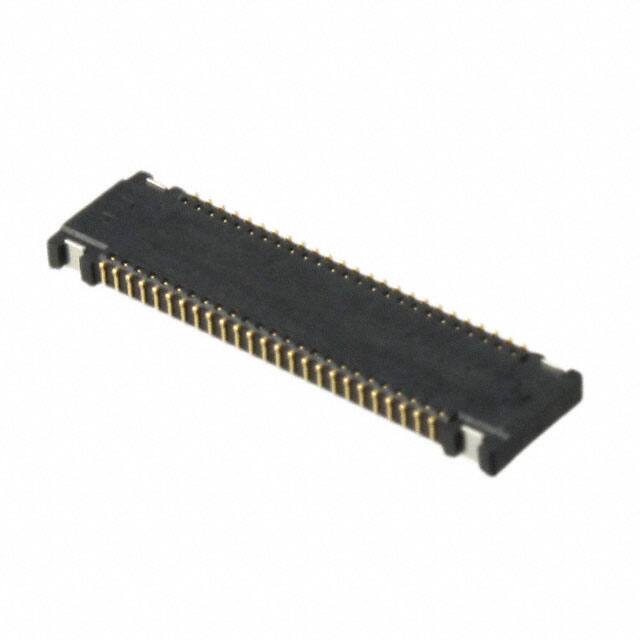

5015915011

Specifications

Montaj Tipi

Surface Mount

Insulation Resistance

100000000Ohm

Reference Standard

UL

Number Of Conductors

ONE

Stack Height Mating

0.9mm

Sıra Sayısı

2

Rated Current Signal

0.3A

Option

GENERAL PURPOSE

Iec Conformance

NO

Board Mounting Option

FITTING NAIL

RoHS Durumu

ROHS3 Compliant

Reliability

COMMERCIAL

Insulator Color

BLACK

Dielectric Withstanding Voltage

176VAC V

Contact Resistance

90mOhm

Body Depth

0.035 inch

Number Of Pcb Rows

2

Connector Type

Receptacle, Center Strip Contacts

Polarization Key

POLARIZED HOUSING

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Body Breadth

0.134 inch

Contact Finish Thickness

3.94μin 0.10μm

Total Number Of Contacts

50

Ambalaj

Tape & Reel (TR)

Ul Flammability Code

94V-0

Pitch

0.016 0.40mm

Fabrika Tedarik Süresi

9 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Seri

SlimStack 501591

Contact Materials

PHOSPHOR BRONZE

Contact Pattern

RECTANGULAR

Mixed Contacts

NO

Pozisyon Sayısı

50

Insulation Materials

GLASS FILLED LIQUID CRYSTAL POLYMER

Contact Gender

FEMALE

Filter Feature

NO

Body Length Or Diameter

0.516 inch

Özellikler

Solder Retention

Yayın Yılı

2010

Contact Finish

Gold
