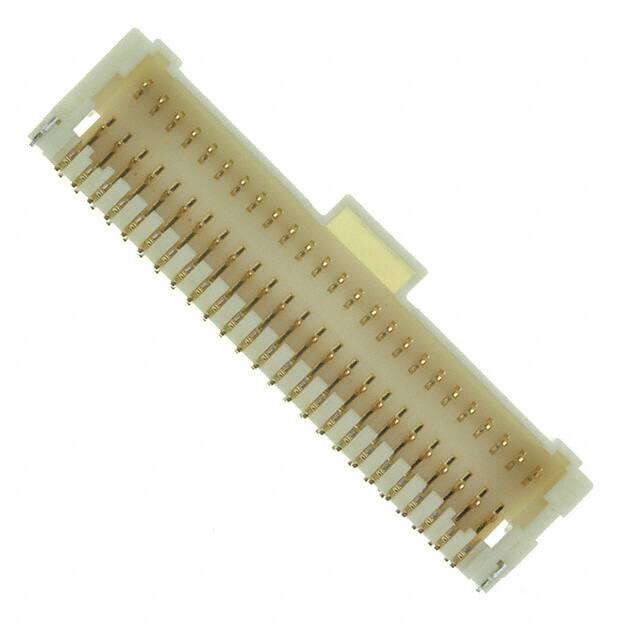

5015715007

Specifications

JESD-609 Kodu

e4

Seri

Pico-Clasp 501571

Pcb Contact Row Spacing

5.6896 mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Contact Finish Thickness Mating

39.4μin 1.00μm

Total Number Of Contacts

50

Ul Flammability Code

94V-0

Contact Type

Male Pin

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Row Spacing Mating

0.105 (2.66mm)

Iec Conformance

NO

Rated Current Signal

1A

Shrouding

Shrouded - 4 Wall

Style

Board to Cable/Wire

Insulation Resistance

100000000Ohm

Parça Durumu

Active

Mil Conformance

NO

Pcb Contact Pattern

RECTANGULAR

Operating Temperature Max

85°C

Din Conformance

NO

Fastening Type

Latch Holder

Yayın Yılı

2017

Özellikler

Solder Retention

Contact Materials

Phosphor Bronze

Fabrika Tedarik Süresi

9 Weeks

Durability

30 Cycles

Mating Contact Pitch

0.039 inch

Ambalaj

Tape & Reel (TR)

Operating Temperature Min

-40°C

Contact Finish Mating

Gold

Terminal

Solder

Polarization Key

POLARIZED HOUSING

Connector Type

Header

Number Of Pcb Rows

2

Reliability

COMMERCIAL

Insulation Height

0.325 8.25mm

RoHS Durumu

ROHS3 Compliant

Insulation Color

Natural

Number Of Conductors

ONE
