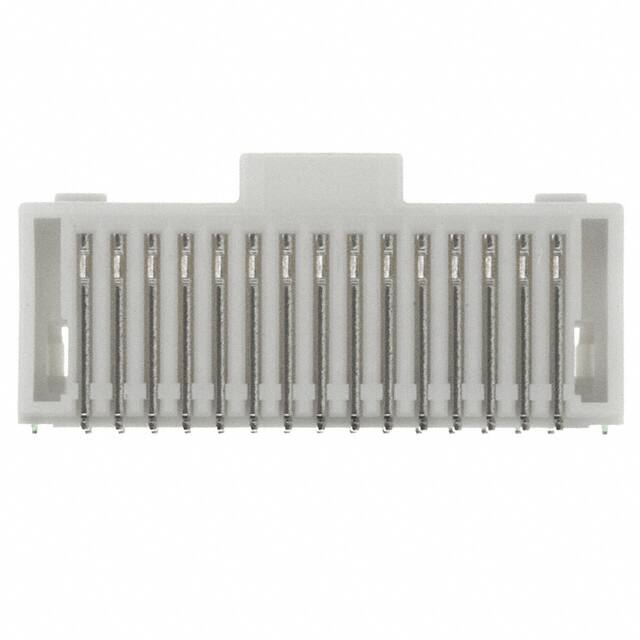

5015713007

Specifications

Insulation Color

Natural

Sıra Sayısı

2

Number Of Conductors

ONE

Pitch Mating

0.039 1.00mm

Reference Standard

UL

Terminal Adımı

1mm

Montaj Tipi

Surface Mount, Right Angle

Number Of Pcb Rows

2

Connector Type

Header

Polarization Key

POLARIZED HOUSING

Terminal

Solder

Reliability

COMMERCIAL

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.325 8.25mm

Contact Finish Mating

Gold

Operating Temperature Min

-40°C

Fabrika Tedarik Süresi

10 Weeks

Ambalaj

Tape & Reel (TR)

Mating Contact Pitch

0.039 inch

Filter Feature

NO

Insulation Materials

Polyamide (PA), Nylon

Pozisyon Sayısı

30

Mixed Contacts

NO

Applications

General Purpose

Number Of Positions Loaded

All

Mounting Option1

LOCKING

Contact Shape

Square

Shrouding

Shrouded - 4 Wall

Style

Board to Cable/Wire

Insulation Resistance

100000000Ohm

Dielectric Withstanding Voltage

350VAC V

Iec Conformance

NO

Rated Current Signal

1A

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Type

Male Pin

Row Spacing Mating

0.105 (2.66mm)

JESD-609 Kodu

e4

Seri

Pico-Clasp 501571

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)
