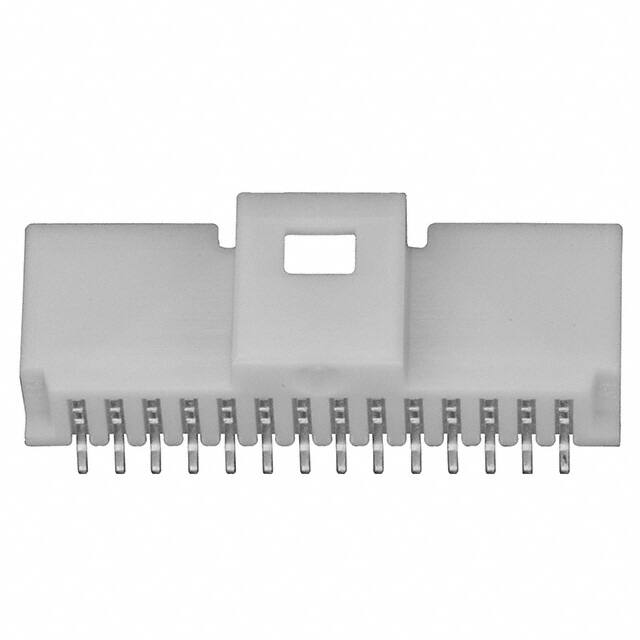

5015681407

Specifications

Montaj

Surface Mount

Contact Finish Mating

Tin

Max Voltage Rating Ac

50V

Contact Type

Male Pin

Maks. Çalışma Sıcaklığı

85°C

Ambalaj

Tape & Reel (TR)

Reach Svhc

No SVHC

Contact Finish Thickness Mating

40.0μin 1.02μm

Fabrika Tedarik Süresi

13 Weeks

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Uzunluk

16mm

Seri

Pico-Clasp 501568

Housing Material

Nylon

Radyasyon Dayanımı

No

Lead Pitch

1mm

Orientation

Right Angle

Montaj Tipi

Surface Mount, Right Angle

Akım Değeri

1A

Style

Board to Cable/Wire

Pitch Mating

0.039 1.00mm

Sıra Sayısı

1

Min. Çalışma Sıcaklığı

-40°C

Shrouding

Shrouded - 4 Wall

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.185 4.70mm

Connector Type

Header

Terminal

Solder

Fastening Type

Latch Holder

Yayın Yılı

2013

Max Voltage Rating Dc

5.05kV

Kurşunsuz Kodu

yes

Contact Shape

Square

Glow Wire Compliant

Non-compliant

Number Of Contacts

14

Parça Durumu

Active

Contact Materials

Phosphor Bronze

Applications

General Purpose

Depth

5.35mm

Kurşunsuz

Lead Free
