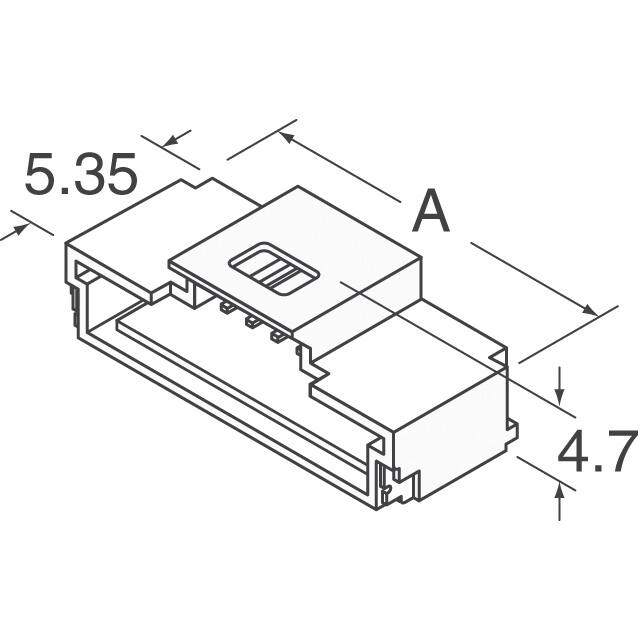

5015681307

Specifications

Contact Type

Male Pin

Contact Finish Mating

Tin

HTS Kodu

8536.69.40.40

Seri

Pico-Clasp 501568

Contact Finish Thickness Mating

40.0μin 1.02μm

Ul Flammability Code

94V-2

Ambalaj

Tape & Reel (TR)

Total Number Of Contacts

13

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

7 Weeks

Shrouding

Shrouded - 4 Wall

Sıra Sayısı

1

Insulation Color

Natural

Montaj Tipi

Surface Mount, Right Angle

Pitch Mating

0.039 1.00mm

Style

Board to Cable/Wire

Terminal

Solder

Connector Type

Header

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.185 4.70mm

Iec Conformance

NO

Din Conformance

NO

Kurşunsuz Kodu

yes

Fastening Type

Latch Holder

Mil Conformance

NO

Parça Durumu

Active

Contact Shape

Square

Pozisyon Sayısı

13

Insulation Materials

Polyamide (PA), Nylon

Filter Feature

NO

Applications

General Purpose

Contact Materials

Phosphor Bronze

ECCN Kodu

EAR99

Mixed Contacts

NO

Özellikler

Solder Retention

Number Of Positions Loaded

All
