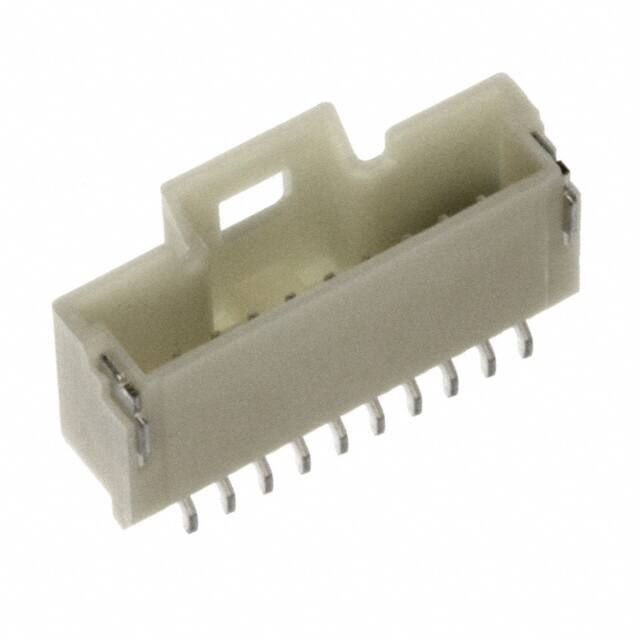

5015681007

Specifications

Mounting Option1

LOCKING

Contact Shape

Square

ECCN Kodu

EAR99

Mixed Contacts

NO

Applications

General Purpose

Filter Feature

NO

Insulation Materials

Polyamide (PA), Nylon

Pozisyon Sayısı

10

Number Of Positions Loaded

All

Contact Finish Mating

Tin

Operating Temperature Min

-40°C

Fabrika Tedarik Süresi

8 Weeks

Durability

30 Cycles

Ambalaj

Tape & Reel (TR)

Mating Contact Pitch

0.039 inch

HTS Kodu

8536.69.40.40

Reference Standard

UL

Pitch Mating

0.039 1.00mm

Montaj Tipi

Surface Mount, Right Angle

Insulation Color

Natural

Sıra Sayısı

1

Number Of Conductors

ONE

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.185 4.70mm

Number Of Pcb Rows

1

Connector Type

Header

Polarization Key

POLARIZED HOUSING

Terminal

Solder

Reliability

COMMERCIAL

Plating Thickness

39μin

Yayın Yılı

2007

Fastening Type

Latch Holder

Kurşunsuz Kodu

yes

Pcb Contact Pattern

RECTANGULAR

Operating Temperature Max

85°C

Din Conformance

NO

Parça Durumu

Active

Mil Conformance

NO

Contact Materials

Phosphor Bronze

Contact Gender

FEMALE
