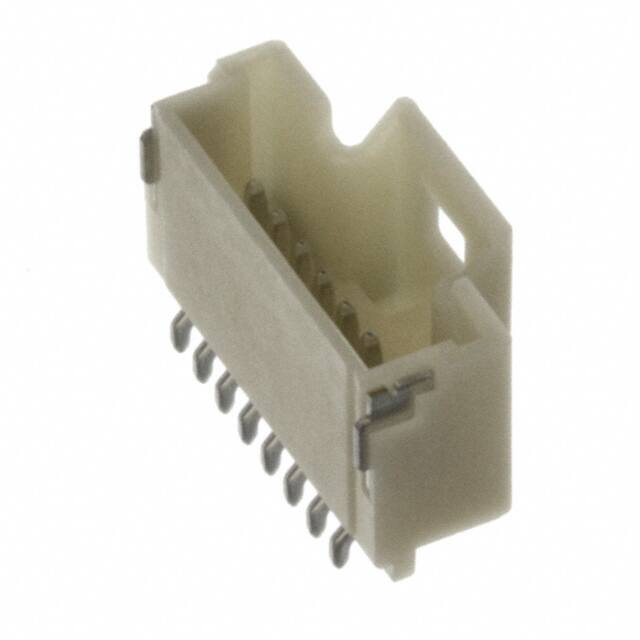

5015680807

Specifications

Insulation Materials

Polyamide (PA), Nylon

Filter Feature

NO

Pozisyon Sayısı

8

Mixed Contacts

NO

ECCN Kodu

EAR99

Applications

General Purpose

Number Of Positions Loaded

All

Mounting Option1

LOCKING

Contact Shape

Square

Insulation Color

Natural

Number Of Conductors

ONE

Sıra Sayısı

1

Reference Standard

UL

Pitch Mating

0.039 1.00mm

Montaj Tipi

Surface Mount, Right Angle

Terminal

Solder

Polarization Key

POLARIZED HOUSING

Connector Type

Header

Reliability

COMMERCIAL

Insulation Height

0.185 4.70mm

RoHS Durumu

ROHS3 Compliant

Operating Temperature Min

-40°C

Contact Finish Mating

Tin

Fabrika Tedarik Süresi

13 Weeks

Durability

30 Cycles

Mating Contact Pitch

0.039 inch

Ambalaj

Tape & Reel (TR)

Contact Materials

Phosphor Bronze

Özellikler

Solder Retention

Kurşunsuz Kodu

yes

Din Conformance

NO

Fastening Type

Latch Holder

Yayın Yılı

2013

Parça Durumu

Active

Mil Conformance

NO

Shrouding

Shrouded - 4 Wall

Style

Board to Cable/Wire

Contact Resistance

20mOhm

Dielectric Withstanding Voltage

250VAC V

Iec Conformance

NO
