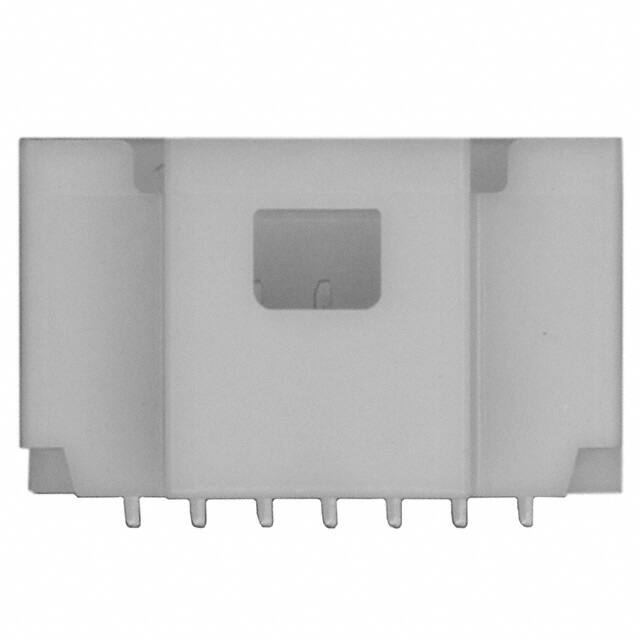

5015680707

Specifications

Contact Finish Mating

Tin

Operating Temperature Min

-40°C

HTS Kodu

8536.69.40.40

Fabrika Tedarik Süresi

14 Weeks

Durability

30 Cycles

Ambalaj

Tape & Reel (TR)

Mating Contact Pitch

0.039 inch

Insulation Color

Natural

Sıra Sayısı

1

Number Of Conductors

ONE

Pitch Mating

0.039 1.00mm

Reference Standard

UL

Montaj Tipi

Surface Mount, Right Angle

Number Of Pcb Rows

1

Connector Type

Header

Polarization Key

POLARIZED HOUSING

Terminal

Solder

Reliability

COMMERCIAL

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.185 4.70mm

Mounting Option1

LOCKING

Contact Shape

Square

Filter Feature

NO

Insulation Materials

Polyamide (PA), Nylon

Pozisyon Sayısı

7

ECCN Kodu

EAR99

Mixed Contacts

NO

Applications

General Purpose

Number Of Positions Loaded

All

Contact Type

Male Pin

JESD-609 Kodu

e3

Seri

Pico-Clasp 501568

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Total Number Of Contacts

7

Ul Flammability Code

94V-2

Contact Finish Thickness Mating

40.0μin 1.02μm

Shrouding

Shrouded - 4 Wall

Style

Board to Cable/Wire

Body Depth

0.232 inch
