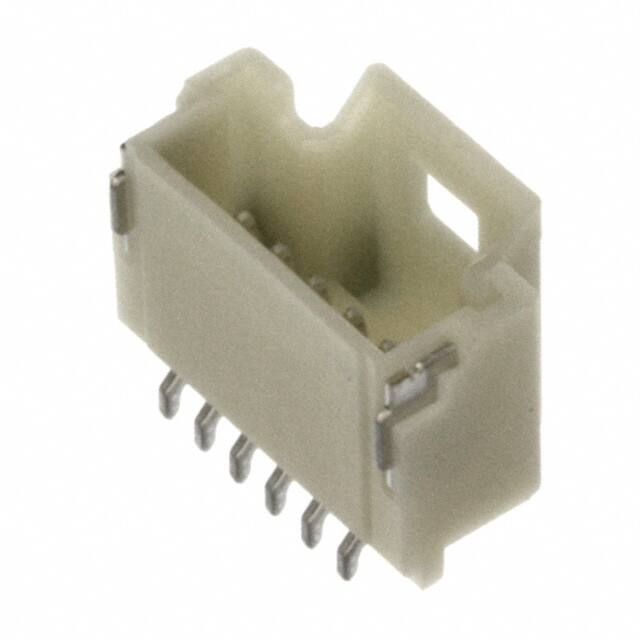

5015680607

Specifications

Iec Conformance

NO

Rated Current Signal

1A

Dielectric Withstanding Voltage

350VAC V

Contact Resistance

20mOhm

Body Depth

0.232 inch

Style

Board to Cable/Wire

Shrouding

Shrouded - 4 Wall

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Ul Flammability Code

94V-0

Total Number Of Contacts

6

Contact Finish Thickness Mating

40.0μin 1.02μm

JESD-609 Kodu

e3

Seri

Pico-Clasp 501568

Contact Type

Male Pin

Özellikler

Solder Retention

Contact Materials

Phosphor Bronze

Contact Gender

FEMALE

Parça Durumu

Active

Mil Conformance

NO

Plating Thickness

39μin

Yayın Yılı

2007

Fastening Type

Latch Holder

Operating Temperature Max

85°C

Pcb Contact Pattern

RECTANGULAR

Din Conformance

NO

Insulation Height

0.185 4.70mm

RoHS Durumu

ROHS3 Compliant

Number Of Pcb Rows

1

Connector Type

Header

Polarization Key

POLARIZED HOUSING

Terminal

Solder

Reliability

COMMERCIAL

Pitch Mating

0.039 1.00mm

Reference Standard

UL

Montaj Tipi

Surface Mount, Right Angle

Insulation Color

Natural

Sıra Sayısı

1

Number Of Conductors

ONE

Durability

30 Cycles
