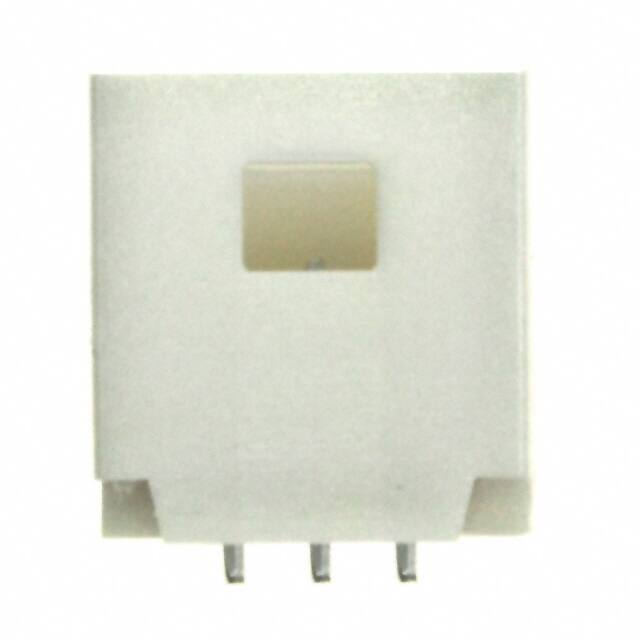

5015680307

Specifications

Insulation Height

0.126 3.20mm

RoHS Durumu

ROHS3 Compliant

Terminal

Solder

Number Of Pcb Rows

1

Connector Type

Header

Polarization Key

POLARIZED HOUSING

Reliability

COMMERCIAL

Pitch Mating

0.039 1.00mm

Reference Standard

UL

Montaj Tipi

Surface Mount, Right Angle

Insulation Color

Natural

Number Of Conductors

ONE

Sıra Sayısı

1

Fabrika Tedarik Süresi

8 Weeks

Ambalaj

Tape & Reel (TR)

Operating Temperature Min

-40°C

Contact Finish Mating

Tin

Number Of Positions Loaded

All

ECCN Kodu

EAR99

Mixed Contacts

NO

Applications

General Purpose

Insulation Materials

Polyamide (PA), Nylon

Filter Feature

NO

Pozisyon Sayısı

3

Contact Shape

Square

Mounting Option1

LOCKING

Iec Conformance

NO

Rated Current Signal

1A

Contact Resistance

20mOhm

Style

Board to Cable/Wire

Shrouding

Shrouded - 4 Wall

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Contact Finish Thickness Mating

40.0μin 1.02μm

Ul Flammability Code

94V-2

Total Number Of Contacts

3

JESD-609 Kodu

e3

Seri

Pico-Clasp 501568

Contact Type

Male Pin

Özellikler

Solder Retention
