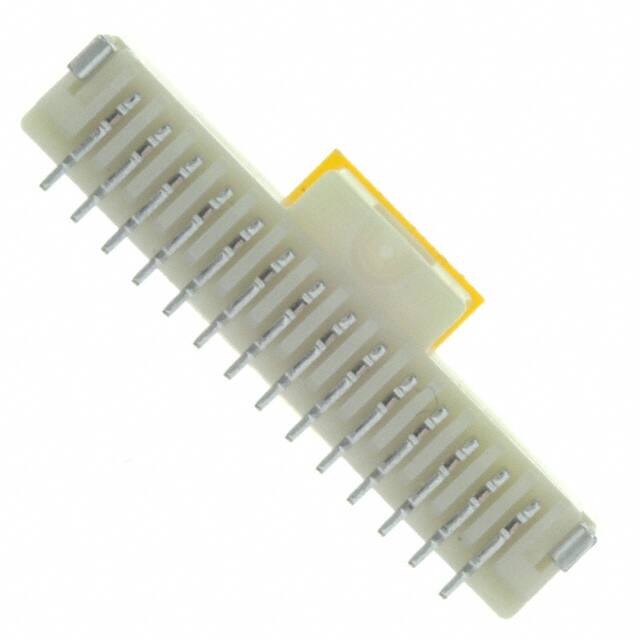

501331-1407

Specifications

Ul Flammability Code

94V-0

Terminal

Solder

Insulation Height

0.213 5.40mm

Din Conformance

NO

Fabrika Tedarik Süresi

17 Weeks

Yayın Yılı

2007

Özellikler

Pick and Place, Solder Retention

Kurşunsuz Kodu

yes

RoHS Durumu

ROHS3 Compliant

Material Flammability Rating

UL94 V-0

Akım Değeri

1A

Maks. Çalışma Sıcaklığı

85°C

Filter Feature

NO

Contact Materials

Phosphor Bronze

Contact Shape

Square

Nominal Gerilim

50V

Uzunluk

16.24mm

Contact Type

Male Pin

Number Of Pcb Rows

1

Depth

5mm

Insulation Materials

Polyamide (PA46), Nylon 4/6

Max Voltage Rating Ac

50V

JESD-609 Kodu

e3

Pitch Mating

0.039 1.00mm

Contact Finish Mating

Tin

Mating Contact Pitch

0.039 inch

Sıra Sayısı

1

Number Of Conductors

ONE

Fastening Type

Latch Holder

Mixed Contacts

NO

Applications

General Purpose

Orientation

Vertical

Style

Board to Cable/Wire

Seri

Pico-Clasp 501331

Gender

Male

Montaj Tipi

Surface Mount

Contact Resistance

20mOhm

Voltage Rated Dc

50V

Number Of Contacts

14

Kurşunsuz

Lead Free
