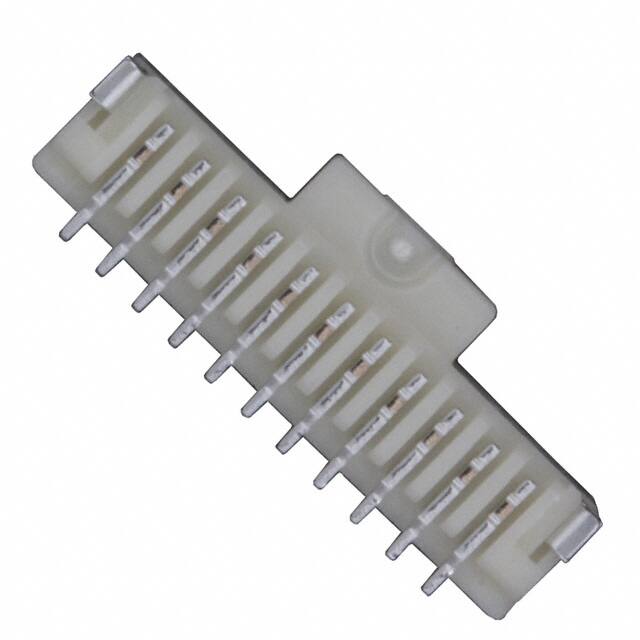

5013311107

Specifications

Parça Durumu

Active

Sıra Sayısı

1

Contact Finish Mating

Tin

Pitch Mating

0.039 1.00mm

Shrouding

Shrouded - 4 Wall

Connector Type

Header

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Materials

Polyamide (PA46), Nylon 4/6

Number Of Positions Loaded

All

Insulation Color

Natural

Ambalaj

Tape & Reel (TR)

Contact Finish Thickness Mating

40.0μin 1.02μm

Contact Type

Male Pin

Contact Materials

Phosphor Bronze

Contact Shape

Square

Pozisyon Sayısı

11

Material Flammability Rating

UL94 V-0

Montaj Tipi

Surface Mount

RoHS Durumu

ROHS3 Compliant

Seri

Pico-Clasp 501331

Insulation Height

0.213 5.40mm

Özellikler

Pick and Place, Solder Retention

Yayın Yılı

2010

Fabrika Tedarik Süresi

15 Weeks

Style

Board to Cable/Wire

Fastening Type

Latch Holder

Applications

General Purpose

Terminal

Solder
