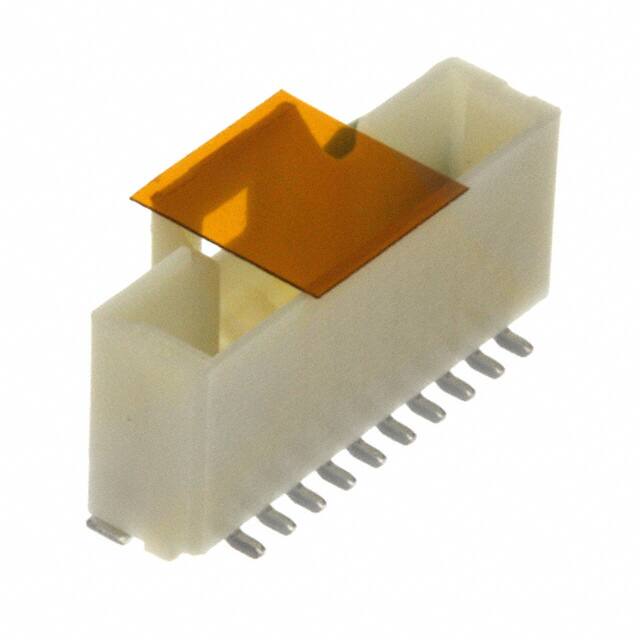

5013311007

Specifications

Pitch Mating

0.039 1.00mm

JESD-609 Kodu

e3

Number Of Conductors

ONE

Mating Contact Pitch

0.039 inch

Sıra Sayısı

1

Contact Finish Mating

Tin

Insulation Color

Natural

Number Of Pcb Rows

1

Insulation Materials

Polyamide (PA46), Nylon 4/6

Pozisyon Sayısı

10

Filter Feature

NO

Material Flammability Rating

UL94 V-0

Contact Type

Male Pin

Body Length Or Diameter

0.472 inch

Operating Temperature Min

-40°C

Contact Materials

Phosphor Bronze

Contact Shape

Square

Fabrika Tedarik Süresi

17 Weeks

Yayın Yılı

2007

Özellikler

Pick and Place, Solder Retention

Insulation Height

0.213 5.40mm

Din Conformance

NO

Terminal

Solder

Ul Flammability Code

94V-0

Kurşunsuz Kodu

yes

RoHS Durumu

ROHS3 Compliant

Mounting Option1

LOCKING

Mil Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Shrouding

Shrouded - 4 Wall

Connector Type

Header

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Reliability

COMMERCIAL

Ambalaj

Tape & Reel (TR)

Total Number Of Contacts

10

Contact Finish Thickness Mating

40.0μin 1.02μm

Dielectric Withstanding Voltage

350VAC V

Number Of Positions Loaded

All

Reference Standard

UL
