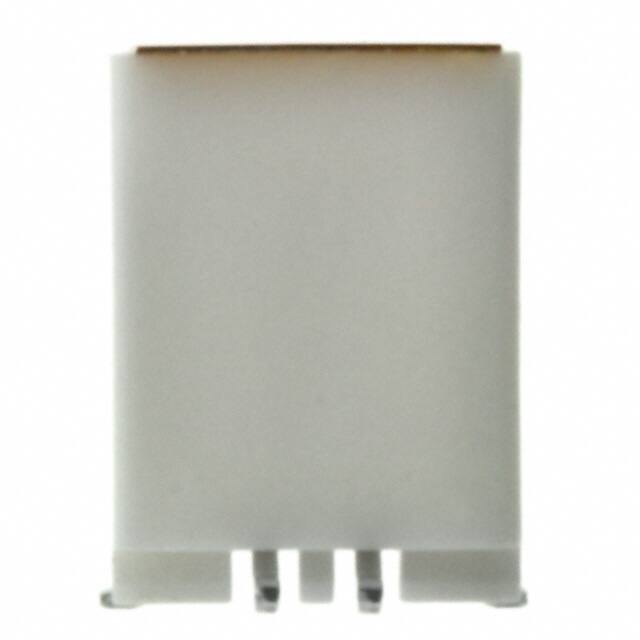

5013310207

Specifications

HTS Kodu

8536.69.40.40

Montaj Tipi

Surface Mount

Material Flammability Rating

UL94 V-0

Reference Standard

UL

Filter Feature

NO

Pozisyon Sayısı

2

Contact Materials

Phosphor Bronze

Contact Shape

Square

Operating Temperature Min

-40°C

Iec Conformance

NO

Contact Type

Male Pin

Mixed Contacts

NO

Fastening Type

Latch Holder

Terminal

Solder

Applications

General Purpose

Din Conformance

NO

Insulation Height

0.213 5.40mm

Style

Board to Cable/Wire

Yayın Yılı

2007

Özellikler

Pick and Place, Solder Retention

Fabrika Tedarik Süresi

17 Weeks

Seri

Pico-Clasp 501331

Mounting Option1

LOCKING

RoHS Durumu

ROHS3 Compliant

Kurşunsuz Kodu

yes

Connector Type

Header

Shrouding

Shrouded - 4 Wall

Nem Hassasiyeti (MSL)

1 (Unlimited)

JESD-609 Kodu

e3

Mil Conformance

NO

Pitch Mating

0.039 1.00mm

Reliability

COMMERCIAL

Contact Finish Mating

Tin

Pcb Contact Pattern

RECTANGULAR

Mating Contact Pitch

0.039 inch

Parça Durumu

Active

Sıra Sayısı

1

Number Of Conductors

ONE

Contact Finish Thickness Mating

40.0μin 1.02μm

Total Number Of Contacts

2
