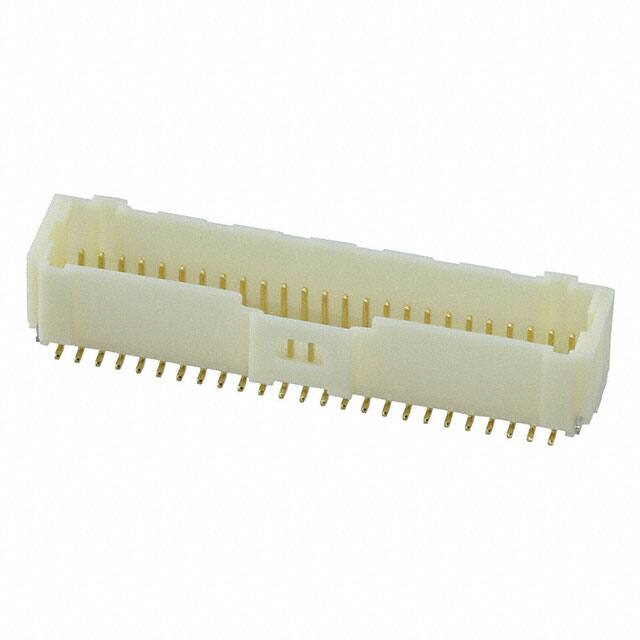

5011905027

Specifications

Seri

Pico-Clasp 501190

Style

Board to Cable/Wire

Operating Temperature Max

105°C

Rated Current Signal

1A

Applications

General Purpose

Fastening Type

Latch Holder

Mixed Contacts

NO

Iec Conformance

NO

Montaj Tipi

Surface Mount

Number Of Positions Loaded

All

Ambalaj

Tape & Reel (TR)

Total Number Of Contacts

50

Contact Finish Thickness Mating

3.90μin 0.099μm

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Reliability

COMMERCIAL

Mil Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Shrouding

Shrouded - 4 Wall

Connector Type

Header

Terminal Adımı

1mm

RoHS Durumu

ROHS3 Compliant

Pcb Contact Row Spacing

5.588 mm

Mounting Option1

LOCKING

Özellikler

Pick and Place, Solder Retention

Yayın Yılı

2007

Fabrika Tedarik Süresi

20 Weeks

Plating Thickness

4μin

Insulation Height

0.213 5.40mm

Din Conformance

NO

Terminal

Solder

Ul Flammability Code

94V-0

Contact Type

Male Pin

Operating Temperature Min

-40°C

Contact Materials

Phosphor Bronze

Contact Shape

Square

Pozisyon Sayısı

50

Filter Feature

NO

Polarization Key

POLARIZED HOUSING

Insulation Resistance

100000000Ohm
