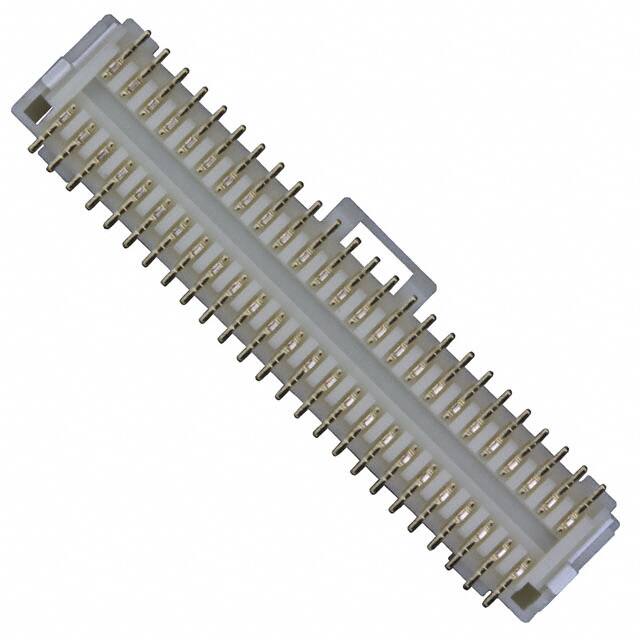

501190-5017

Specifications

Plating Thickness

4μin

Özellikler

Pick and Place, Solder Retention

Yayın Yılı

2007

Fabrika Tedarik Süresi

10 Weeks

Insulation Height

0.213 5.40mm

Din Conformance

NO

Terminal

Solder

Ul Flammability Code

94V-0

RoHS Durumu

ROHS3 Compliant

Kurşunsuz Kodu

yes

Pcb Contact Row Spacing

5.588 mm

Filter Feature

NO

Polarization Key

POLARIZED HOUSING

Insulation Resistance

100000000Ohm

Maks. Çalışma Sıcaklığı

85°C

HTS Kodu

8536.69.40.40

Akım Değeri

1A

Material Flammability Rating

UL94 V-0

Contact Type

Male Pin

Uzunluk

27.3mm

Nominal Gerilim

50V

Contact Materials

Phosphor Bronze

Contact Shape

Square

Number Of Pcb Rows

2

Stack Height Mating

6.8mm

Insulation Materials

Polyamide (PA), Nylon

ECCN Kodu

EAR99

Durability

30 Cycles

Depth

7.27mm

Row Spacing Mating

0.105 (2.66mm)

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Pitch Mating

0.039 1.00mm

JESD-609 Kodu

e4

Number Of Conductors

ONE

Sıra Sayısı

2

Mating Contact Pitch

0.039 inch

Contact Finish Mating

Gold

Style

Board to Cable/Wire

Rated Current Signal

1A

Orientation

Vertical
