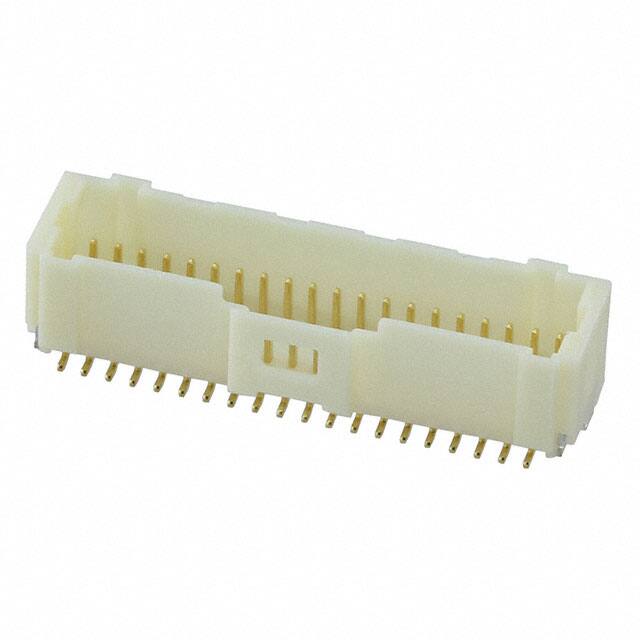

5011904027

Specifications

Dielectric Withstanding Voltage

350VAC V

Number Of Positions Loaded

All

Ambalaj

Tape & Reel (TR)

Contact Finish Thickness Mating

3.90μin 0.099μm

Total Number Of Contacts

40

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active

Reliability

COMMERCIAL

Connector Type

Header

Shrouding

Shrouded - 4 Wall

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mil Conformance

NO

Seri

Pico-Clasp 501190

Rated Current Signal

1A

Operating Temperature Max

105°C

Style

Board to Cable/Wire

Mixed Contacts

NO

Fastening Type

Latch Holder

Applications

General Purpose

Iec Conformance

NO

Montaj Tipi

Surface Mount

Insulation Materials

Polyamide (PA), Nylon

Stack Height Mating

6.8mm

Durability

30 Cycles

Insulation Color

Natural

Number Of Pcb Rows

2

Mating Contact Pitch

0.039 inch

Sıra Sayısı

2

Number Of Conductors

ONE

Contact Finish Mating

Gold

Pitch Mating

0.039 1.00mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Row Spacing Mating

0.105 (2.66mm)

JESD-609 Kodu

e4

RoHS Durumu

ROHS3 Compliant

Kurşunsuz Kodu

yes

Terminal Adımı

1mm

Mounting Option1

LOCKING

Pcb Contact Row Spacing

5.588 mm

Din Conformance

NO
