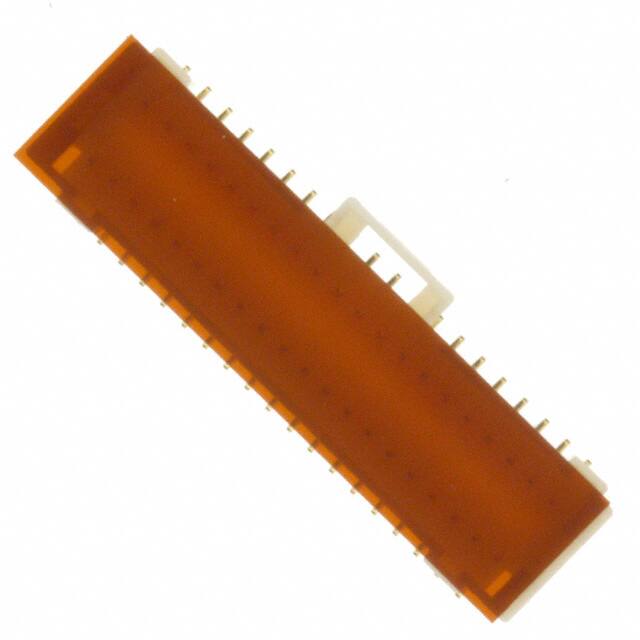

5011904017

Specifications

Terminal

Solder

Ul Flammability Code

94V-0

Fabrika Tedarik Süresi

10 Weeks

Yayın Yılı

2007

Özellikler

Pick and Place, Solder Retention

Plating Thickness

4μin

Insulation Height

0.213 5.40mm

Din Conformance

NO

Pcb Contact Row Spacing

5.588 mm

Mounting Option1

LOCKING

Terminal Adımı

1mm

Kurşunsuz Kodu

yes

RoHS Durumu

ROHS3 Compliant

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

40

Filter Feature

NO

Polarization Key

POLARIZED HOUSING

Insulation Resistance

100000000Ohm

Contact Materials

Phosphor Bronze

Contact Shape

Square

Contact Type

Male Pin

Number Of Pcb Rows

2

Insulation Color

Natural

Durability

30 Cycles

Insulation Materials

Polyamide (PA), Nylon

Stack Height Mating

6.8mm

JESD-609 Kodu

e4

Row Spacing Mating

0.105 (2.66mm)

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Pitch Mating

0.039 1.00mm

Contact Finish Mating

Gold

Number Of Conductors

ONE

Sıra Sayısı

2

Mating Contact Pitch

0.039 inch

Applications

General Purpose

Fastening Type

Latch Holder

Mixed Contacts

NO

Style

Board to Cable/Wire

Operating Temperature Max

105°C

Rated Current Signal

1A
