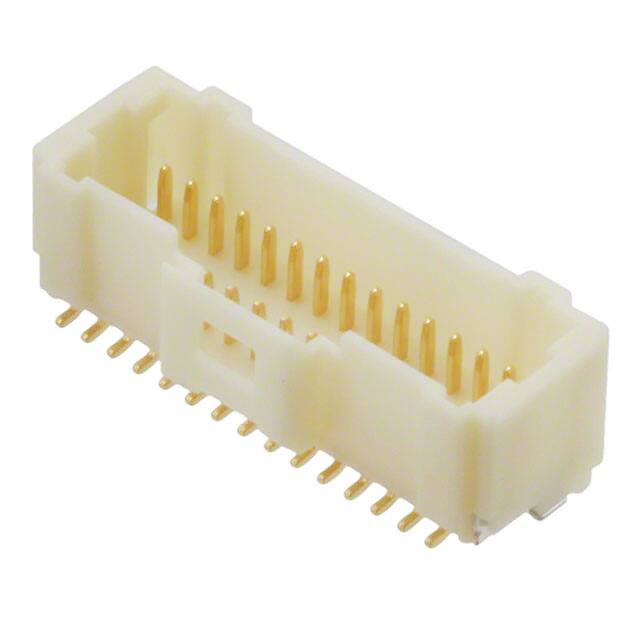

5011903017

Specifications

Iec Conformance

NO

Montaj Tipi

Surface Mount

Seri

Pico-Clasp 501190

Operating Temperature Max

105°C

Style

Board to Cable/Wire

Rated Current Signal

1A

Applications

General Purpose

Mixed Contacts

NO

Fastening Type

Latch Holder

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active

Reliability

COMMERCIAL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mil Conformance

NO

Connector Type

Header

Shrouding

Shrouded - 4 Wall

Dielectric Withstanding Voltage

350VAC V

Number Of Positions Loaded

All

Ambalaj

Tape & Reel (TR)

Total Number Of Contacts

30

Contact Finish Thickness Mating

3.90μin 0.099μm

Contact Type

Male Pin

Contact Shape

Square

Contact Materials

Phosphor Bronze

Operating Temperature Min

-40°C

Filter Feature

NO

Pozisyon Sayısı

30

Insulation Resistance

100000000Ohm

Polarization Key

POLARIZED HOUSING

HTS Kodu

8536.69.40.40

Material Flammability Rating

UL94 V-0

Terminal Adımı

1mm

RoHS Durumu

ROHS3 Compliant

Mounting Option1

LOCKING

Pcb Contact Row Spacing

5.588 mm

Plating Thickness

4μin

Özellikler

Pick and Place, Solder Retention

Yayın Yılı

2007

Fabrika Tedarik Süresi

10 Weeks

Din Conformance

NO
