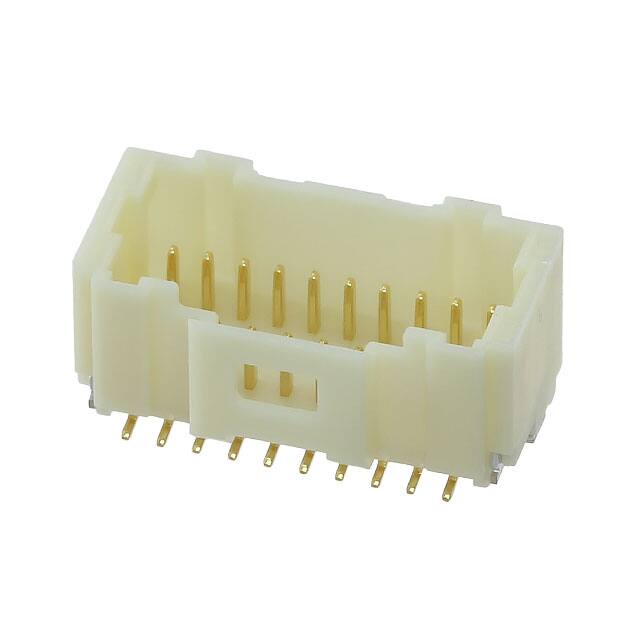

5011902027

Specifications

Number Of Conductors

ONE

Mating Contact Pitch

0.039 inch

Sıra Sayısı

2

Contact Finish Mating

Gold

Pitch Mating

0.039 1.00mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Row Spacing Mating

0.105 (2.66mm)

JESD-609 Kodu

e4

Insulation Materials

Polyamide (PA), Nylon

Stack Height Mating

6.8mm

Durability

30 Cycles

Insulation Color

Natural

Number Of Pcb Rows

2

Contact Type

Male Pin

Operating Temperature Min

-40°C

Contact Materials

Phosphor Bronze

Contact Shape

Square

Pozisyon Sayısı

20

Filter Feature

NO

Insulation Resistance

100000000Ohm

Polarization Key

POLARIZED HOUSING

Material Flammability Rating

UL94 V-0

Terminal Adımı

1mm

Kurşunsuz Kodu

yes

RoHS Durumu

ROHS3 Compliant

Pcb Contact Row Spacing

5.588 mm

Mounting Option1

LOCKING

Özellikler

Pick and Place, Solder Retention

Yayın Yılı

2007

Fabrika Tedarik Süresi

10 Weeks

Plating Thickness

4μin

Din Conformance

NO

Insulation Height

0.213 5.40mm

Terminal

Solder

Ul Flammability Code

94V-0

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Reliability

COMMERCIAL

Mil Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)
