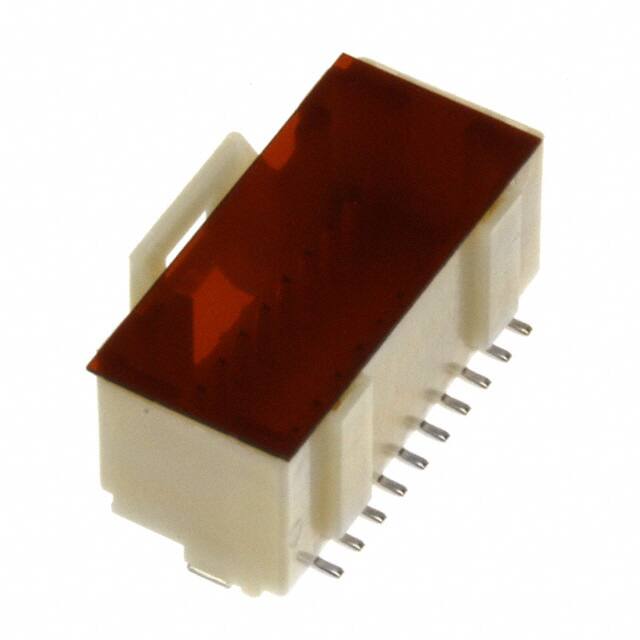

5011902017

Specifications

Material Flammability Rating

UL94 V-0

Polarization Key

POLARIZED HOUSING

Insulation Resistance

100000000Ohm

Pozisyon Sayısı

20

Filter Feature

NO

Operating Temperature Min

-40°C

Contact Materials

Phosphor Bronze

Contact Shape

Square

Contact Type

Male Pin

Ul Flammability Code

94V-0

Terminal

Solder

Din Conformance

NO

Insulation Height

0.213 5.40mm

Özellikler

Pick and Place, Solder Retention

Yayın Yılı

2007

Fabrika Tedarik Süresi

9 Weeks

Plating Thickness

4μin

Pcb Contact Row Spacing

5.588 mm

Mounting Option1

LOCKING

RoHS Durumu

ROHS3 Compliant

Terminal Adımı

1mm

JESD-609 Kodu

e4

Pitch Mating

0.039 1.00mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Row Spacing Mating

0.105 (2.66mm)

Contact Finish Mating

Gold

Mating Contact Pitch

0.039 inch

Sıra Sayısı

2

Number Of Conductors

ONE

Number Of Pcb Rows

2

Insulation Color

Natural

Durability

30 Cycles

Insulation Materials

Polyamide (PA), Nylon

Stack Height Mating

6.8mm

Montaj Tipi

Surface Mount

Iec Conformance

NO

Fastening Type

Latch Holder

Mixed Contacts

NO

Applications

General Purpose

Rated Current Signal

1A
