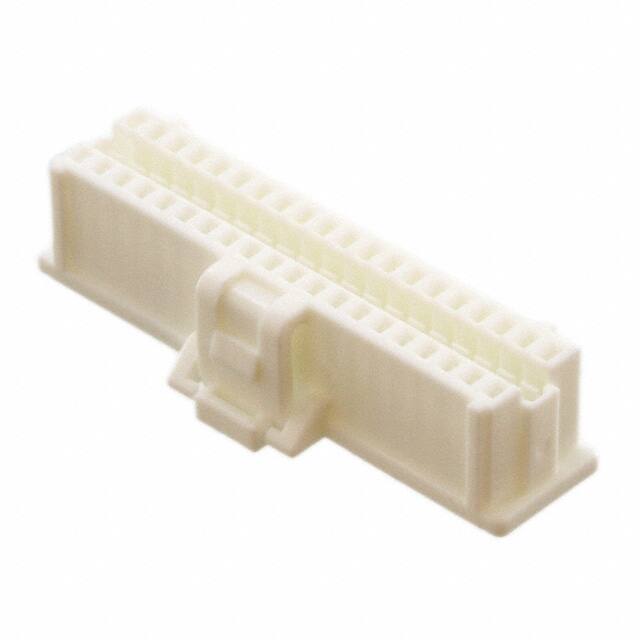

5011894010

Specifications

Renk

White

Total Number Of Contacts

40

Note

Contacts Not Included

Ambalaj

Bulk

Body Depth

0.197 inch

Durability

30 Cycles

Pitch

0.039 1.00mm

Insulation Materials

GLASS FILLED POLYAMIDE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mil Conformance

NO

Connector Type

Receptacle

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Finish Mating

NOT SPECIFIED

Reliability

COMMERCIAL

Row Spacing

0.105 (2.66mm)

Parça Durumu

Active

Sıra Sayısı

2

Ul Flammability Code

94V-0

Mixed Contacts

NO

Fastening Type

Locking Ramp

Operating Temperature Max

85°C

Yayın Yılı

2010

Fabrika Tedarik Süresi

11 Weeks

Din Conformance

NO

Rated Current Signal

1A

Seri

Pico-Clasp 501189

Contact Termination

Crimp

RoHS Durumu

ROHS3 Compliant

Montaj Tipi

Free Hanging (In-Line)

Filter Feature

NO

Pozisyon Sayısı

40

Reference Standard

UL

Insulation Resistance

100000000Ohm

Polarization Key

POLARIZED HOUSING

Option

GENERAL PURPOSE

Iec Conformance

NO

Contact Materials

NOT SPECIFIED

Insulation Diametermin

0.016 inch

Contact Type

Female Socket

Body Length Or Diameter

0.854 inch
