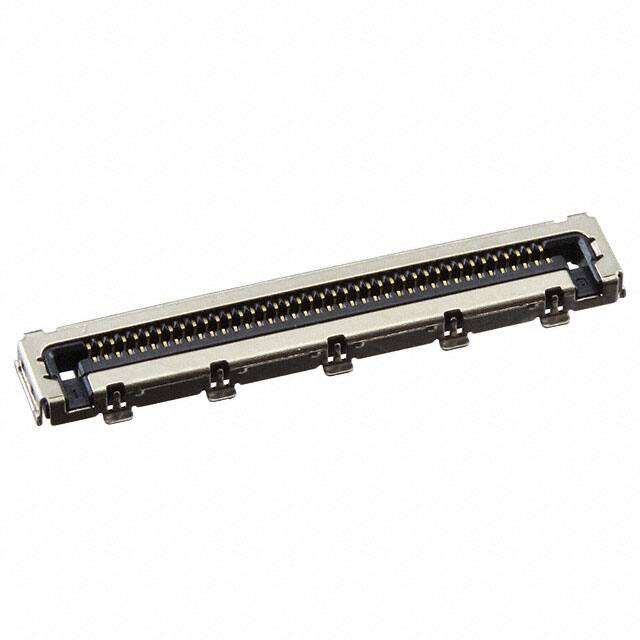

5010834010

Specifications

Connector Type

Receptacle

Contact Type

Center Strip Contact

Current Rating Amps

0.2A per Contact

Contact Finish Thickness Mating

8.00μin 0.203μm

Özellikler

Shielded, Solder Retention

Pitch Mating

0.016 0.40mm

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

8 Weeks

Contact Finish Mating

Gold

Number Of Pcb Rows

1

Insulation Color

Black

Mounting Option1

LOCKING

Number Of Positions Loaded

All

Sıra Sayısı

1

Contact Resistance

450mOhm

Applications

General Purpose, Medical

Style

Board to Cable/Wire

Insulation Materials

Plastic, Glass Filled

Kurşunsuz Kodu

yes

Yayın Yılı

2015

Contact Finish Thickness Post

16.0μin 0.41μm

Pozisyon Sayısı

40

Contact Materials

Copper Alloy

Reliability

COMMERCIAL

Body Length Or Diameter

0.795 inch

RoHS Durumu

ROHS3 Compliant

Contact Gender

MALE

Çalışma Sıcaklığı

-30°C~75°C

Terminal

Solder

Body Depth

0.049 inch

Number Of Conductors

ONE

Fastening Type

Detent Lock

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Surface Mount

Insulation Height

0.049 1.25mm

Polarization Key

POLARIZED HOUSING

Seri

501083

Reference Standard

UL

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active
