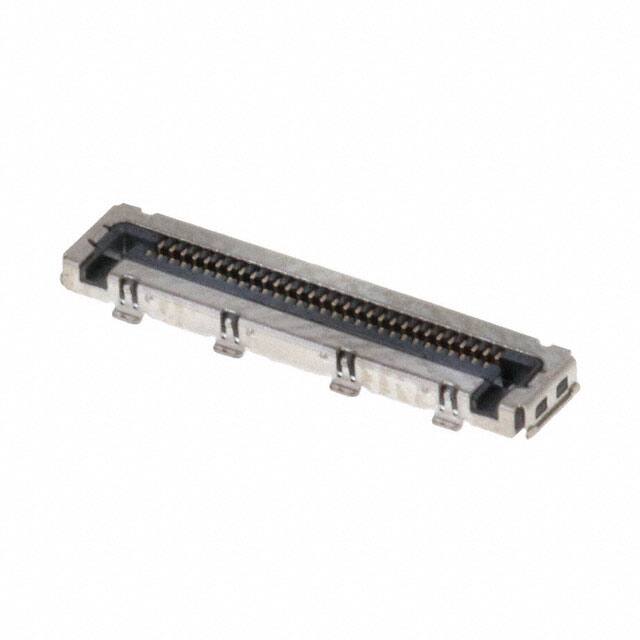

5010833010

Specifications

Mounting Option1

LOCKING

Number Of Pcb Rows

1

Contact Finish Mating

Gold

Material Flammability Rating

UL94 V-0

Current Rating Amps

0.2A per Contact

Connector Type

Receptacle

Contact Type

Center Strip Contact

Yayın Yılı

2013

Mixed Contacts

NO

Style

Board to Cable/Wire

Sıra Sayısı

1

Number Of Positions Loaded

All

Body Depth

0.049 inch

Terminal

Solder

RoHS Durumu

ROHS3 Compliant

Body Length Or Diameter

0.638 inch

Contact Finish Thickness Post

16.0μin 0.41μm

Nominal Gerilim

30V

Filter Feature

NO

Ambalaj

Tape & Reel (TR)

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active

Reference Standard

UL

Polarization Key

POLARIZED HOUSING

Fastening Type

Detent Lock

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal Adımı

0.4mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Insulation Color

Black

Fabrika Tedarik Süresi

8 Weeks

Pitch Mating

0.016 0.40mm

Özellikler

Shielded, Solder Retention

Contact Finish Thickness Mating

8.00μin 0.203μm

Kurşunsuz Kodu

yes

Insulation Materials

Plastic, Glass Filled

Applications

General Purpose, Medical

Contact Resistance

450mOhm

Din Conformance

NO

Contact Gender

FEMALE

Çalışma Sıcaklığı

-30°C~75°C
