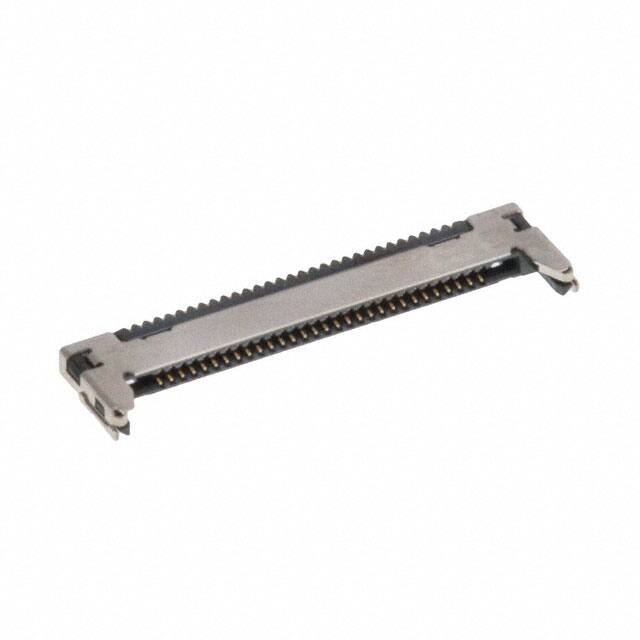

5010443010

Specifications

Radyasyon Dayanımı

No

Number Of Positions Loaded

All

Style

Board to Cable/Wire

ECCN Kodu

EAR99

Sıra Sayısı

1

Yayın Yılı

2015

Contact Type

Center Strip Contact

Connector Type

Receptacle

Reach Svhc

No SVHC

Halogen Free

Low Halogen

Number Of Contacts

30

Current Rating Amps

0.2A per Contact

Contact Finish Mating

Gold

Akım Değeri

300mA

Material Flammability Rating

UL94 V-0

Number Of Pcb Rows

1

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fastening Type

Detent Lock

Terminal Adımı

0.4064mm

Polarization Key

POLARIZED HOUSING

Parça Durumu

Obsolete

Pcb Contact Pattern

RECTANGULAR

HTS Kodu

8536.69.40.40

Reference Standard

UL

Nominal Gerilim

30V

Ambalaj

Tape & Reel (TR)

Housing Material

Thermoplastic

Body Breadth

0.045 inch

Contact Finish Thickness Post

16.0μin 0.41μm

RoHS Durumu

ROHS3 Compliant

Terminal

Solder

Plating Thickness

8μin

Applications

General Purpose, Medical

Contact Resistance

450mOhm

Insulation Materials

Plastic, Glass Filled

Özellikler

Shielded, Solder Retention

Glow Wire Compliant

Non-compliant

Contact Finish Thickness Mating

8.00μin 0.203μm

Fabrika Tedarik Süresi

11 Weeks

Pitch Mating

0.016 0.40mm
