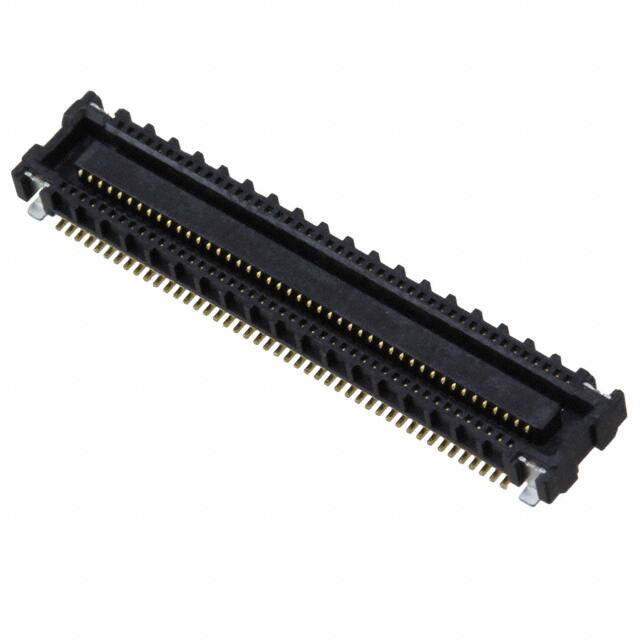

Specifications
- Contact Resistance
- 40mOhm
- Contact Materials
- NOT SPECIFIED
- Rated Current Signal
- 0.3A
- Contact Finish Thickness
- 8.00μin 0.203μm
- Pcb Contact Pattern
- RECTANGULAR
- Parça Durumu
- Active
- Polarization Key
- POLARIZED HOUSING
- Durability
- 30 Cycles
- RoHS Durumu
- ROHS3 Compliant
- Contact Gender
- FEMALE
- Contact Pattern
- RECTANGULAR
- Özellikler
- Solder Retention
- Insulator Color
- BLACK
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Number Of Conductors
- ONE
- Dielectric Withstanding Voltage
- 350VAC V
- Contact Finish
- Gold
- Montaj Tipi
- Surface Mount
- Pitch
- 0.016 0.40mm
- Contact Style
- BELLOWED TYPE
- Fabrika Tedarik Süresi
- 13 Weeks
- Insulation Resistance
- 100000000Ohm
- Board Mounting Option
- FITTING NAIL
- Operating Temperature Max
- 85°C
- ECCN Kodu
- EAR99
- Insulation Materials
- LIQUID CRYSTAL POLYMER (LCP)
- Sıra Sayısı
- 2
- Body Depth
- 0.063 inch
- Ambalaj
- Tape & Reel (TR)
- Height Above Board
- 0.063 1.60mm
- Connector Type
- Receptacle, Center Strip Contacts
- Stack Height Mating
- 1.8mm
- Reliability
- COMMERCIAL
- Seri
- SlimStack 500913
- HTS Kodu
- 8536.69.40.40
- Pozisyon Sayısı
- 90
- Body Breadth
- 0.154 inch
- Mounting Option1
- LOCKING
- Body Length Or Diameter
- 0.83 inch
- Number Of Pcb Rows
- 2
