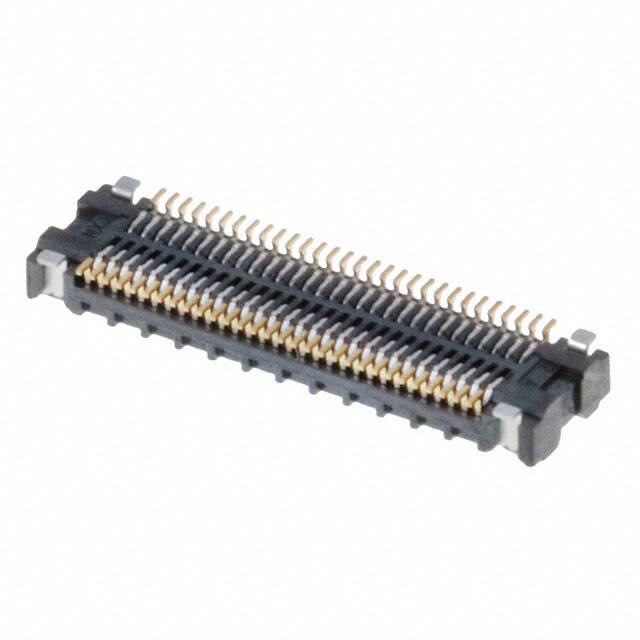

5009130602

Specifications

Operating Temperature Max

85°C

Insulation Resistance

100000000Ohm

Fabrika Tedarik Süresi

8 Weeks

Sıra Sayısı

2

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Insulation Materials

GLASS FILLED LIQUID CRYSTAL POLYMER

Connector Type

Receptacle, Center Strip Contacts

Ambalaj

Tape & Reel (TR)

Body Depth

0.063 inch

Stack Height Mating

1.8mm

Pozisyon Sayısı

60

Yayın Yılı

2013

Number Of Pcb Rows

2

Mixed Contacts

NO

Pcb Contact Row Spacing

3.6576 mm

Reference Standard

UL

Contact Materials

PHOSPHOR BRONZE

Rated Current Signal

0.3A

Filter Feature

NO

Mil Conformance

NO

Contact Pattern

RECTANGULAR

Contact Gender

FEMALE

Number Of Conductors

ONE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulator Color

BLACK

Additional Feature

MXJ

Board Mounting Option

FITTING NAIL

Height Above Board

0.063 1.60mm

Reliability

COMMERCIAL

Seri

SlimStack 500913

Iec Conformance

NO

Body Breadth

0.154 inch

Total Number Of Contacts

60

Body Length Or Diameter

0.594 inch

Mounting Option1

LOCKING

Plating Thickness

8μin

JESD-609 Kodu

e4

Contact Resistance

40mOhm

Option

GENERAL PURPOSE

Parça Durumu

Active
