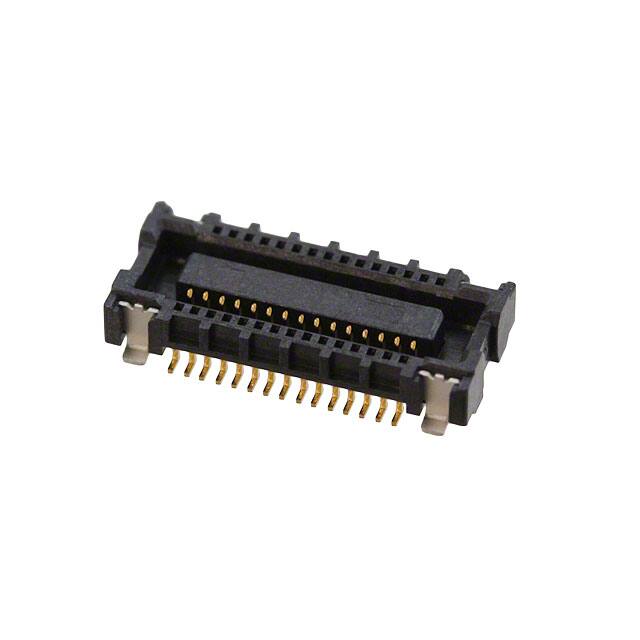

5009130302

Specifications

Polarization Key

POLARIZED HOUSING

RoHS Durumu

ROHS3 Compliant

Contact Finish Thickness

8.00μin 0.203μm

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Rated Current Signal

0.3A

Contact Resistance

40mOhm

Contact Materials

NOT SPECIFIED

Contact Style

BELLOWED TYPE

Contact Finish

Gold

Dielectric Withstanding Voltage

350VAC V

Montaj Tipi

Surface Mount

Pitch

0.016 0.40mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulator Color

BLACK

Number Of Conductors

ONE

Contact Gender

FEMALE

Contact Pattern

RECTANGULAR

Özellikler

Solder Retention

Reliability

COMMERCIAL

Stack Height Mating

1.8mm

Height Above Board

0.063 1.60mm

Body Depth

0.063 inch

Ambalaj

Tape & Reel (TR)

Connector Type

Receptacle, Center Strip Contacts

Insulation Materials

LIQUID CRYSTAL POLYMER (LCP)

ECCN Kodu

EAR99

Sıra Sayısı

2

Fabrika Tedarik Süresi

13 Weeks

Board Mounting Option

FITTING NAIL

Operating Temperature Max

85°C

Insulation Resistance

100000000Ohm

Reference Standard

UL

Plating Thickness

8μin

Pcb Contact Row Spacing

3.6576 mm

Mounting Option1

LOCKING

Yayın Yılı

2016

Total Number Of Contacts

30

Number Of Pcb Rows

2

Body Length Or Diameter

0.358 inch
