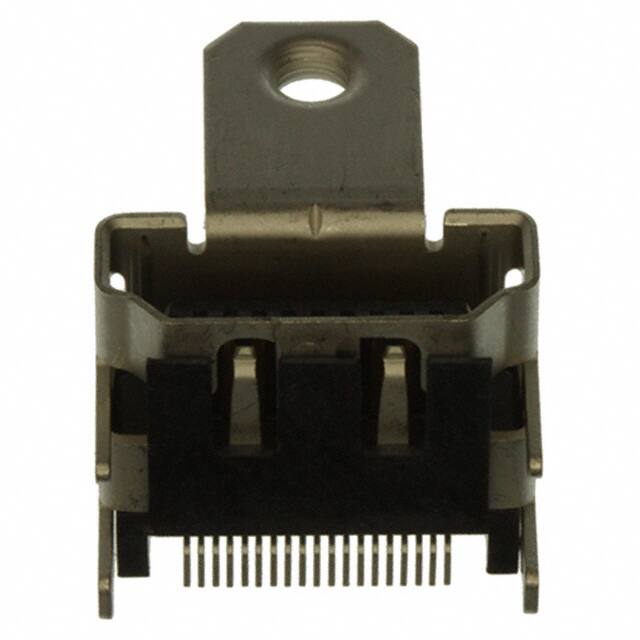

5002541931

Specifications

Dielectric Withstanding Voltage

500VAC V

Contact Resistance

30mOhm

Contact Materials

NOT SPECIFIED

Reliability

COMMERCIAL

Additional Feature

PANEL MOUNTABLE

Filter Feature

NO

Number Of Contacts

19

Iec Conformance

NO

Mounting Option1

M3X0.5

Terminal

Solder

Shielding

Shielded

Body Depth

0.478 inch

Ul Flammability Code

94V-0

Reference Standard

UL

Kurşunsuz Kodu

yes

Seri

500254

Polarization Key

POLARIZED HOUSING

Shellshielding Material

Copper Alloy

Nominal Gerilim

40VAC/DC

Yayın Yılı

2011

Withdrawl Forcemin

.2502 N

Material Flammability Rating

UL94 V-0

Mounting Option2

MOUNTING FLANGE

Empty Shell

NO

Çalışma Sıcaklığı

-20°C~85°C

Ambalaj

Tray

Montaj Tipi

Surface Mount, Right Angle; Through Hole

Insertion Forcemax

2.3352 N

Gender

Receptacle

Mixed Contacts

NO

Contact Style

USB, SER A FLAT

Mil Conformance

NO

Mounting Feature

Flange, Horizontal

Number Of Conductors

ONE

Plating Thickness

30μin

Number Of Ports

1

Number Of Pcb Rows

1

Option

GENERAL PURPOSE

Pcb Contact Pattern

RECTANGULAR

Fabrika Tedarik Süresi

19 Weeks
