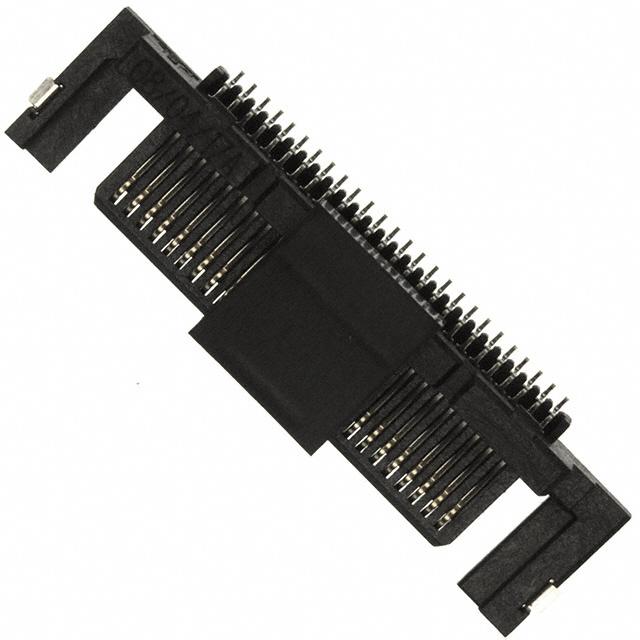

47322-0002

Specifications

Contact Finish Termination

TIN (60)

Contact Materials

PHOSPHOR BRONZE

Operating Temperature Min

-40°C

HTS Kodu

8536.69.40.40

Rated Current Signal

0.75A

Montaj Tipi

BOARD

Insulation Resistance

100000000Ohm

Insulation Materials

LIQUID CRYSTAL POLYMER (LCP)

Insertion Forcemax

39.1424 N

Total Number Of Contacts

26

Withdrawl Forcemin

3.753 N

Bodyshell Style

RECEPTACLE

Durability

10000 Cycles

Mating Contact Pitch

0.039 inch

Pcb Contact Pattern

RECTANGULAR

Number Of Conductors

ONE

Terminal Adımı

0.9906mm

Plating Thickness

15u inch

Additional Feature

ROHS AND ELV COMPLIANT

RoHS Durumu

RoHS Compliant

Contact Resistance

55mOhm

Yayın Yılı

2006

ECCN Kodu

EAR99

Sıra Sayısı

1

Montaj Stili

RIGHT ANGLE

Connector Type

PCB CONNECTOR

JESD-609 Kodu

e3

Number Of Ports

1

Number Of Pcb Rows

1

Termination Type

SURFACE MOUNT

Kurşunsuz Kodu

icon-pbfree yes

Contact Finish Mating

GOLD (15)

Reference Standard

UL

Body Breadth

0.236 inch

Contact Gender

MALE

Board Mounting Option

LOCATING POSTS

Body Length Or Diameter

1.634 inch

Reliability

COMMERCIAL

Dielectric Withstanding Voltage

500VAC V

Parça Durumu

Discontinued
