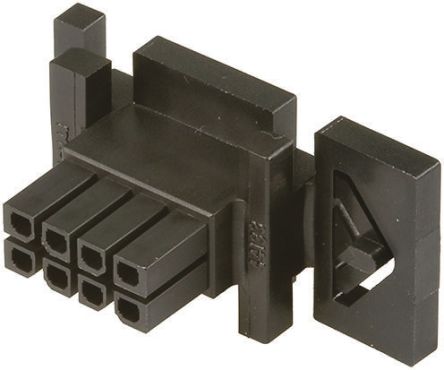

44133-2400

Specifications

Genişlik

15.2mm

Reliability

COMMERCIAL

Withdrawl Forcemin

3.5584 N

Radyasyon Dayanımı

No

Akım Değeri

5A

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Additional Feature

MICRO-FIT 3.0, BMI, PANEL MOUNTABLE

Din Conformance

NO

Number Of Contacts

24

Mixed Contacts

NO

Option

GENERAL PURPOSE

Body Breadth

0.6 inch

Reference Standard

UL

Iec Conformance

NO

Filter Feature

NO

Pitch

3mm

Number Of Conductors

ONE

Contact Gender

Female

Uzunluk

54.9mm

Depth

16mm

Renk

Black

Ul Flammability Code

94V-0

Row Spacing Mating

2.9972 mm

RoHS Durumu

RoHS Compliant

Sıra Sayısı

2

Housing Material

Polyester

Min. Çalışma Sıcaklığı

-40°C

Terminal

Crimp

Contact Resistance

10mOhm

Maks. Çalışma Sıcaklığı

105°C

Insertion Forcemax

11.5648 N

Max Voltage Rating Dc

176.25kV

Yayın Yılı

2006

Insulation Resistance

1000000000Ohm

Connector Type

Receptacle, Socket

Operating Supply Voltage

250V

Fabrika Tedarik Süresi

10 Weeks

Reach Svhc

No SVHC

Kurşunsuz

Contains Lead

Mil Conformance

NO
