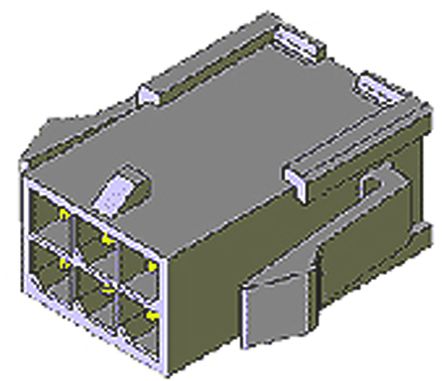

43020-2201

Specifications

Number Of Contacts

22

Genişlik

16.89mm

Reliability

COMMERCIAL

HTS Kodu

8536.69.40.30

Iec Conformance

NO

Filter Feature

NO

Pitch

3mm

Renk

Black

Mixed Contacts

NO

Option

GENERAL PURPOSE

Onay Kuruluşu

CSA, TUV, UL

Fastening Type

Ramp

Lead Pitch

3mm

Contact Materials

NOT SPECIFIED

Min. Çalışma Sıcaklığı

-40°C

Insertion Forcemax

8.0064 N

Ul Flammability Code

94V-0

Row Spacing Mating

2.9972 mm

Sıra Sayısı

2

Orientation

Straight

Fabrika Tedarik Süresi

10 Weeks

Mil Conformance

NO

Kurşunsuz

Lead Free

Ambalaj

Bulk

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Additional Feature

WITHOUT PANEL MOUNT EARS

Din Conformance

NO

Akım Değeri

5A

Number Of Conductors

ONE

Contact Gender

Male

Uzunluk

33.85mm

Depth

8.25mm

Terminal

Crimp

Maks. Çalışma Sıcaklığı

105°C

Max Voltage Rating Dc

350.35kV

Yayın Yılı

2006

Flammability Rating

UL94 V-0

RoHS Durumu

RoHS Compliant

Housing Material

Polyester

Empty Shell

NO
