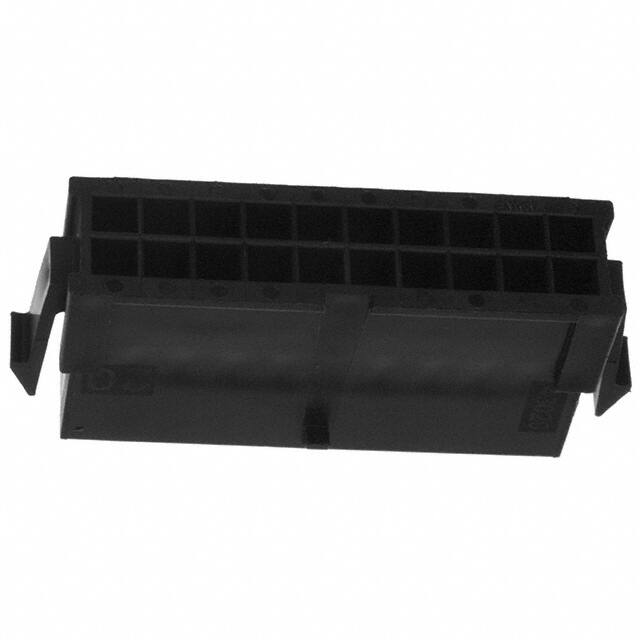

430202000

Specifications

Fastening Type

Locking Ramp

Mixed Contacts

NO

Option

GENERAL PURPOSE

Montaj Tipi

Panel Mount, Snap-In

Renk

Black

Mounting Option2

LATCH

Body Depth

0.665 inch

Iec Conformance

NO

Filter Feature

NO

Pitch

0.118 3.00mm

Number Of Conductors

ONE

Shell Material

PBT-POLYESTER

Reliability

COMMERCIAL

Operating Temperature Min

-40°C

Total Number Of Contacts

20

Din Conformance

NO

Additional Feature

WITH PANEL MOUNT EARS

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Ambalaj

Bulk

Mil Conformance

NO

Contact Finish Mating

NOT SPECIFIED

Connector Type

Plug

Fabrika Tedarik Süresi

16 Weeks

Parça Durumu

Active

Contact Termination

Crimp

Kurşunsuz Kodu

yes

Empty Shell

NO

Seri

Micro-Fit 3.0 43020

RoHS Durumu

ROHS3 Compliant

Operating Temperature Max

105°C

Note

Contacts Not Included

Insulation Materials

POLYESTER

Sıra Sayısı

2

Ul Flammability Code

94V-0

Yayın Yılı

2010

Pozisyon Sayısı

20

Contact Type

Male Pin

Insertion Forcemax

8.0064 N

Row Spacing

0.118 (3.00mm)
