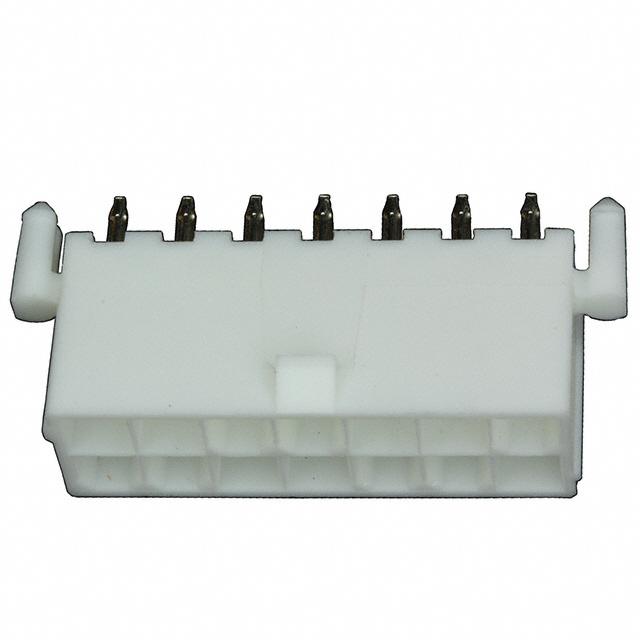

39-29-9147

Specifications

Polarization Key

HOUSING SIDE

Parça Durumu

Active

Durability

30 Cycles

Kurşunsuz Kodu

yes

Fabrika Tedarik Süresi

9 Weeks

Empty Shell

NO

Pozisyon Sayısı

14

Contact Gender

Male

Connector Type

Male Pin

Iec Conformance

NO

Number Of Conductors

ONE

Option

GENERAL PURPOSE

Body Breadth

0.38 inch

Voltage Rated Dc

600V

Body Length Or Diameter

1.48 inch

Pitch

4.2mm

Body Depth

0.504 inch

Gender

Female

Total Number Of Contacts

14

Sıra Sayısı

2

Fastening Type

Ramp

Rated Current Signal

6A

Maks. Çalışma Sıcaklığı

105°C

Contact Resistance

10mOhm

RoHS Durumu

RoHS Compliant

JESD-609 Kodu

e3

Contact Plating

Tin

Contact Style

SQ PIN-SKT

Orientation

Vertical

Ul Flammability Code

94V-0

Glow Wire Compliant

Non-compliant

Lead Pitch

4.2mm

Mil Conformance

NO

Halogen Free

Low Halogen

Yayın Yılı

2011

Flammability Rating

UL94 V-0

Contact Pattern

RECTANGULAR

Bodyshell Style

PLUG

Din Conformance

NO

Pcb Contact Row Spacing

5.5118 mm
