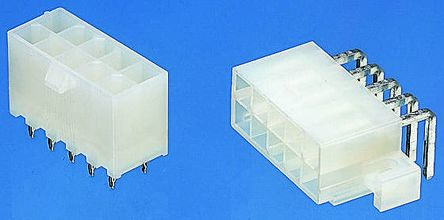

39-29-9066

Specifications

Total Number Of Contacts

6

Pitch

4.2mm

Gender

Female

Body Depth

0.504 inch

Body Length Or Diameter

0.819 inch

Body Breadth

0.38 inch

Voltage Rated Dc

600V

Option

GENERAL PURPOSE

Number Of Conductors

ONE

Iec Conformance

NO

Contact Gender

Male

Connector Type

Male Pin

Empty Shell

NO

Pozisyon Sayısı

6

Length Termination

0.14 inch

Fabrika Tedarik Süresi

8 Weeks

Current Rating Max

8A

Kurşunsuz Kodu

yes

Durability

30 Cycles

Polarization Key

HOUSING SIDE

Parça Durumu

Active

Reach Svhc

Unknown

Contact Pattern

RECTANGULAR

Bodyshell Style

PLUG

Flammability Rating

UL94 V-0

Yayın Yılı

2008

Halogen Free

Low Halogen

Mil Conformance

NO

Ul Flammability Code

94V-0

Glow Wire Compliant

Non-compliant

Lead Pitch

4.2mm

Radyasyon Dayanımı

No

Orientation

Vertical

RoHS Durumu

RoHS Compliant

Contact Resistance

10mOhm

Contact Style

SQ PIN-SKT

Contact Plating

Tin

JESD-609 Kodu

e3

Maks. Çalışma Sıcaklığı

105°C

Sıra Sayısı

2
