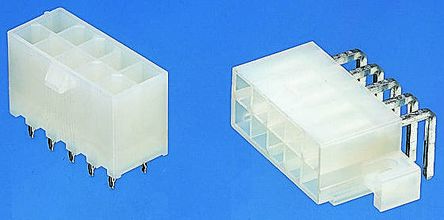

39-29-9046

Specifications

Terminal

Solder

Reference Standard

UL, CSA

Contact Materials

Brass

Akım Değeri

8A

Mixed Contacts

NO

Montaj

Through Hole

Row Spacing Mating

4.191 mm

Additional Feature

MINI-FIT JR.

Insulation Resistance

1GOhm

Dielectric Withstanding Voltage

1500VAC V

Reliability

COMMERCIAL

Min. Çalışma Sıcaklığı

-40°C

Filter Feature

NO

Max Voltage Rating Dc

600.6kV

Shell Material

POLYAMIDE66

ECCN Kodu

EAR99

Housing Material

Nylon

Renk

Natural

Din Conformance

NO

Bodyshell Style

PLUG

Reach Svhc

Unknown

Flammability Rating

UL94 V-0

Yayın Yılı

2009

Halogen Free

Low Halogen

Lead Pitch

4.2mm

Radyasyon Dayanımı

No

Glow Wire Compliant

Non-compliant

Mil Conformance

NO

JESD-609 Kodu

e2

Contact Plating

Tin

Contact Style

SQ PIN-SKT

RoHS Durumu

RoHS Compliant

Contact Resistance

10mOhm

Orientation

Vertical

Maks. Çalışma Sıcaklığı

105°C

Fastening Type

Ramp

Sıra Sayısı

2

Body Depth

0.5 inch

Pitch

4.2mm

Total Number Of Contacts

4
