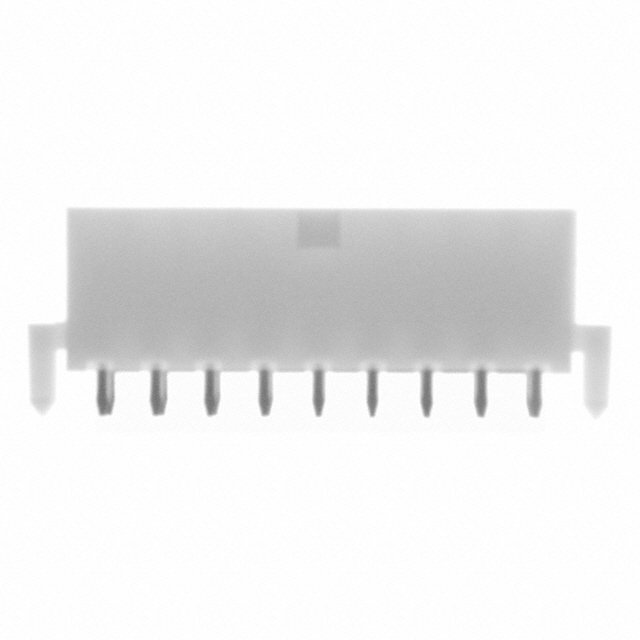

39-28-9188

Specifications

Terminal

Solder

Reference Standard

UL, CSA

Contact Materials

Brass

Akım Değeri

6A

Withdrawl Forcemin

3.1136 N

Mixed Contacts

NO

HTS Kodu

8536.69.40.30

Montaj

Through Hole

Number Of Pcb Rows

2

Row Spacing Mating

4.191 mm

Additional Feature

MINI-FIT JR.

Insulation Resistance

1000000000Ohm

Dielectric Withstanding Voltage

1500VAC V

Reliability

COMMERCIAL

Min. Çalışma Sıcaklığı

-40°C

Filter Feature

NO

Max Voltage Rating Dc

600.6kV

Shell Material

POLYAMIDE66

Pcb Contact Pattern

RECTANGULAR

ECCN Kodu

EAR99

Housing Material

Nylon

Renk

Natural

Din Conformance

NO

Bodyshell Style

RECEPTACLE

Contact Pattern

RECTANGULAR

Flammability Rating

UL94 V-0

Yayın Yılı

2011

Halogen Free

Low Halogen

Radyasyon Dayanımı

No

Lead Pitch

4.2mm

Glow Wire Compliant

Non-compliant

Ul Flammability Code

94V-0

Mil Conformance

NO

JESD-609 Kodu

e3

Contact Plating

Gold

Contact Style

SQ PIN-SKT

RoHS Durumu

RoHS Compliant

Contact Resistance

10mOhm

Orientation

Vertical

Rated Current Signal

9A
