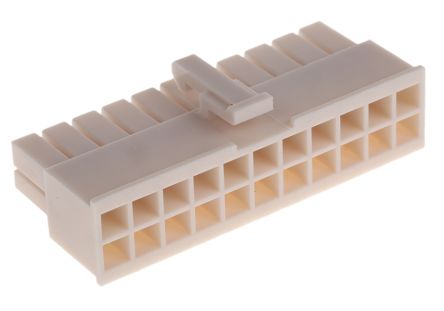

39-01-2225

Specifications

Reference Standard

UL

Min. Çalışma Sıcaklığı

-40°C

Number Of Contacts

22

Number Of Conductors

ONE

Additional Feature

MINI-FIT JR, COMPATIBLE CONTACTS: 39-00-0077; 39-00-0038, POLARIZED

Row Spacing Mating

4.191 mm

Genişlik

15.1mm

Yayın Yılı

2009

Pitch

4.2mm

Insulation Resistance

1000000000Ohm

Body Breadth

0.46 inch

Din Conformance

NO

ECCN Kodu

EAR99

Depth

19.6mm

Orientation

Straight

Nominal Gerilim

600V

Montaj

Cable, Free Hanging

Contact Style

SQ PIN-SKT

Glow Wire Compliant

Non-compliant

RoHS Durumu

RoHS Compliant

Filter Feature

NO

Kurşunsuz Kodu

yes

Fastening Type

Latch

Max Voltage Rating Ac

600V

Maks. Çalışma Sıcaklığı

105°C

Mixed Contacts

NO

Renk

White

Sıra Sayısı

2

Uzunluk

47.4mm

Akım Değeri

13A

Connector Type

Receptacle, Socket

Insertion Forcemax

14.6784 N

Dielectric Withstanding Voltage

1500VAC V

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Empty Shell

NO

HTS Kodu

8536.69.40.30

Yükseklik

15.1mm

Terminal

Crimp

Fabrika Tedarik Süresi

8 Weeks

Housing Color

Natural
