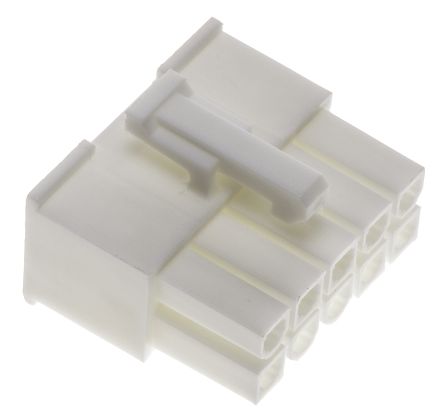

39-01-2105

Specifications

RoHS Durumu

RoHS Compliant

Filter Feature

NO

Flammability Rating

UL94 V-0

Glow Wire Compliant

Non-compliant

Contact Style

SQ PIN-SKT

Current Rating Max

9A

Pin Sayısı

8

Kurşunsuz Kodu

yes

Renk

Natural, White

Sıra Sayısı

2

Max Voltage Rating Ac

600V

Mixed Contacts

NO

Maks. Çalışma Sıcaklığı

105°C

Voltage Rated Dc

600V

Number Of Contacts

10

Number Of Conductors

ONE

Material

Nylon

Contact Gender

Female

Reference Standard

UL

Min. Çalışma Sıcaklığı

-40°C

Pitch

4.2mm

Bodyshell Style

RECEPTACLE

Yayın Yılı

2008

Genişlik

15.1mm

Depth

19.6mm

Din Conformance

NO

Body Breadth

0.46 inch

Montaj

Cable

Orientation

Straight

Reach Svhc

Unknown

Mil Conformance

NO

Parça Durumu

Active

Onay Kuruluşu

CSA, TUV, UL

Kurşunsuz

Lead Free

Option

GENERAL PURPOSE

Ul Flammability Code

94V-0

Max Voltage Rating Dc

600.6kV

Reliability

COMMERCIAL

Halogen Free

Low Halogen

Housing Material

Polyamide
