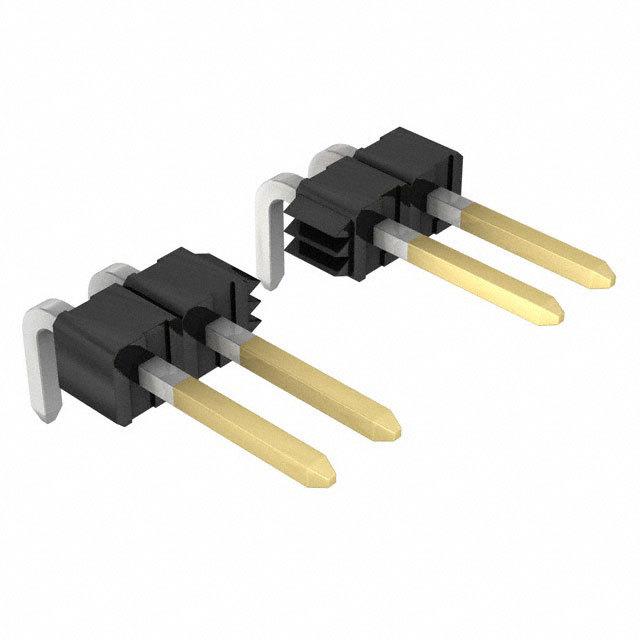

22-28-8144

Specifications

Din Conformance

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Yayın Yılı

2012

Contact Style

SQ PIN-SKT

Pozisyon Sayısı

14

Durability

25 Cycles

Mixed Contacts

NO

Kurşunsuz Kodu

yes

Filter Feature

NO

Sıra Sayısı

1

Orientation

Right Angle

Plating Thickness

30μin

Nominal Gerilim

250V

Additional Feature

MATING LENGTH=0.244 INCHES

HTS Kodu

8536.69.40.40

Mil Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

RoHS Durumu

RoHS Compliant

Parça Durumu

Active

Polarization Key

POLAR PIN POSITION

Body Breadth

0.098 inch

Renk

Black

Number Of Pcb Rows

1

Kurşunsuz

Lead Free

Reference Standard

UL, CSA

Maks. Çalışma Sıcaklığı

75°C

Lead Length

3.05mm

Reliability

COMMERCIAL

Total Number Of Contacts

14

Number Of Conductors

ONE

Akım Değeri

4A

Option

GENERAL PURPOSE

ECCN Kodu

EAR99

Connector Type

Male Pin

Contact Lengthmating

6.1976mm

Ambalaj

Bulk

Ul Flammability Code

94V-0

Glow Wire Compliant

Non-compliant

Mating Post Length

6.2mm

Bodyshell Style

RECEPTACLE
