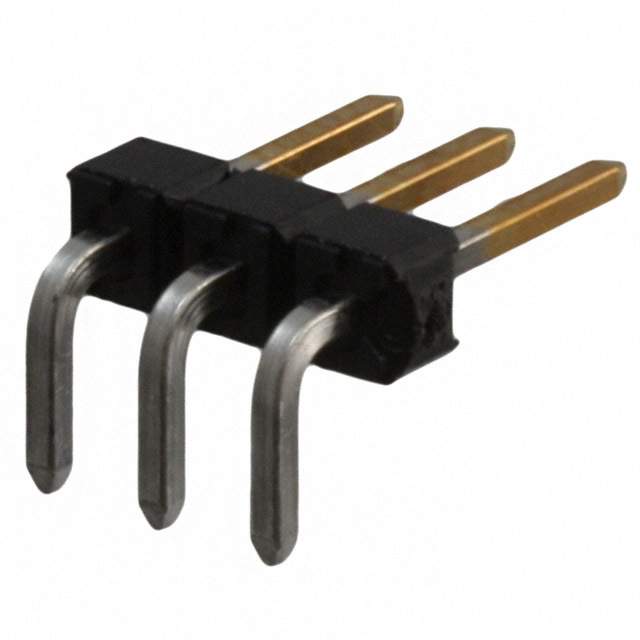

22-28-8034

Specifications

Mixed Contacts

NO

Kurşunsuz Kodu

yes

Durability

25 Cycles

Pozisyon Sayısı

3

Yayın Yılı

2013

Contact Style

SQ PIN-SKT

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Din Conformance

NO

Orientation

Right Angle

Filter Feature

NO

Sıra Sayısı

1

Fabrika Tedarik Süresi

8 Weeks

RoHS Durumu

RoHS Compliant

Additional Feature

MATING LENGTH=0.244 INCHES

Mil Conformance

NO

Nominal Gerilim

250V

Number Of Pcb Rows

1

Renk

Black

Polarization Key

POLAR PIN POSITION

Body Breadth

0.098 inch

Parça Durumu

Active

Gender

Male

Max Voltage Rating Dc

250.25kV

Ambalaj

Bulk

Ul Flammability Code

94V-0

Contact Lengthmating

6.1976mm

Connector Type

Male Pin

ECCN Kodu

EAR99

Number Of Conductors

ONE

Akım Değeri

4A

Option

GENERAL PURPOSE

Yükseklik

2.49mm

Reliability

COMMERCIAL

Total Number Of Contacts

3

Kurşunsuz

Lead Free

Reference Standard

UL, CSA

Maks. Çalışma Sıcaklığı

75°C

Contact Resistance

20mOhm

Housing Material

Thermoplastic

Iec Conformance

NO
