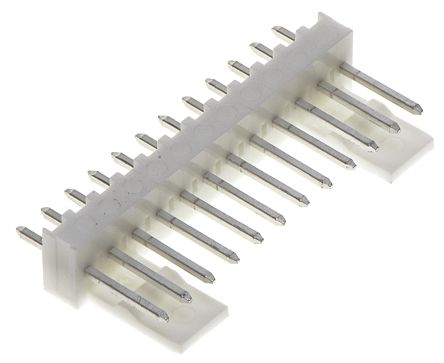

22-27-2121

Specifications

Filter Feature

NO

Renk

White

Montaj

Cable, Through Hole

Terminal

Solder

Kurşunsuz

Lead Free

Rated Current Signal

2.5A

Connector Type

Male Pin

Depth

5.8mm

Contact Materials

Brass

Yükseklik

11.7mm

Contact Resistance

20mOhm

Maks. Çalışma Sıcaklığı

75°C

HTS Kodu

8536.69.40.40

RoHS Durumu

RoHS Compliant

Din Conformance

NO

Radyasyon Dayanımı

No

Number Of Conductors

ONE

Contact Plating

Tin

Yayın Yılı

2009

Bodyshell Style

RECEPTACLE

Pitch

2.54mm

Glow Wire Compliant

Non-compliant

Ambalaj

Bulk

Option

GENERAL PURPOSE

Flammability Rating

UL94 V-0

Iec Conformance

NO

Reference Standard

UL, CSA

Orientation

Vertical

Reach Svhc

Unknown

Contact Gender

Male

Housing Material

Nylon

Uzunluk

30.48mm

ECCN Kodu

EAR99

Voltage Rated Dc

250V

Hole Diameter

1.02 mm

Additional Feature

KK

Pcb Contact Pattern

RECTANGULAR

Voltage Working

250V

Withdrawl Forcemin

.556 N

Lead Pitch

2.54mm
