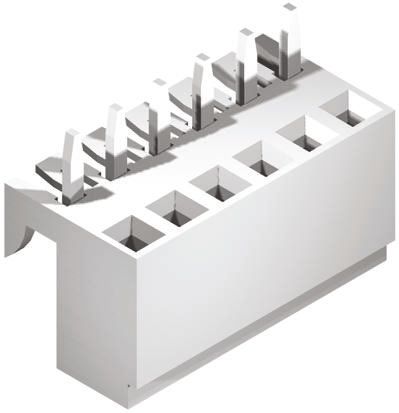

22-14-2044

Specifications

Contact Resistance

20mOhm

Maks. Çalışma Sıcaklığı

75°C

Number Of Conductors

ONE

Contact Plating

Tin

RoHS Durumu

RoHS Compliant

Din Conformance

NO

Radyasyon Dayanımı

No

Connector Type

Receptacle, Socket

Depth

7.7mm

Contact Materials

Brass

Yükseklik

7.9mm

Renk

White

Terminal

Solder

Montaj

Through Hole

Filter Feature

NO

Gender

Receptacle

ECCN Kodu

EAR99

Uzunluk

10.06mm

Nominal Gerilim

250V

Orientation

Straight

Dielectric Withstanding Voltage

250VAC V

Contact Gender

Female

Housing Material

Nylon

Iec Conformance

NO

Total Number Of Contacts

4

Option

GENERAL PURPOSE

Reference Standard

UL, CSA

Yayın Yılı

2009

Durability

25 Cycles

Glow Wire Compliant

Non-compliant

Bodyshell Style

PLUG

Pitch

2.54mm

Insertion Forcemax

2.502 N

Reliability

COMMERCIAL

Halogen Free

Low Halogen

Insulation Resistance

500000000000Ohm

Contact Pattern

RECTANGULAR

Contact Style

BELLOWED TYPE

Current Rating Max

2.5A

Mixed Contacts

NO
