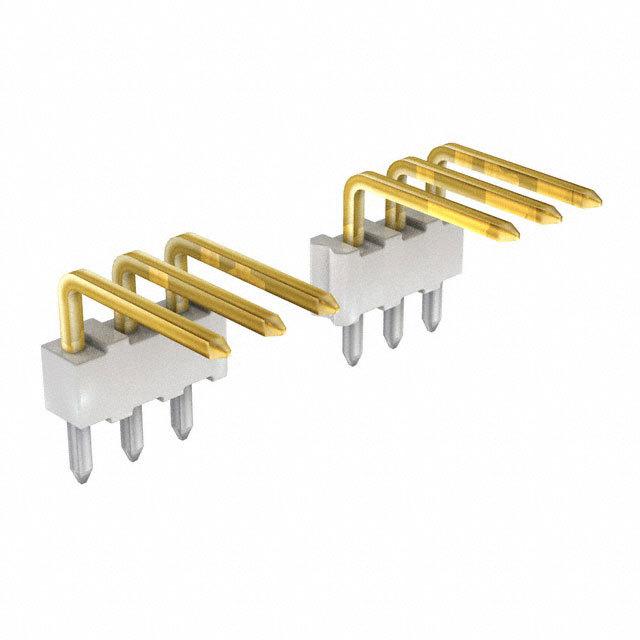

22-12-2091

Specifications

Mil Conformance

NO

Number Of Pcb Rows

1

Parça Durumu

Active

Kurşunsuz Kodu

yes

Fabrika Tedarik Süresi

10 Weeks

Sıra Sayısı

1

Contact Lengthmating

9.3726mm

Akım Değeri

4A

Body Breadth

0.248 inch

Min. Çalışma Sıcaklığı

0°C

Pozisyon Sayısı

9

Reliability

COMMERCIAL

Halogen Free

Low Halogen

Insulation Resistance

50GOhm

Contact Pattern

RECTANGULAR

Contact Style

SQ PIN-SKT

Mixed Contacts

NO

Lead Pitch

2.54mm

Additional Feature

KK

Pcb Contact Pattern

RECTANGULAR

Uzunluk

22.6mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Voltage Rated Dc

250V

Orientation

Right Angle

Housing Material

Nylon

Flammability Rating

UL94 V-0

Iec Conformance

NO

Ambalaj

Bulk

Total Number Of Contacts

9

Option

GENERAL PURPOSE

Reference Standard

UL, CSA

Yayın Yılı

2009

Durability

25 Cycles

Glow Wire Compliant

Non-compliant

Bodyshell Style

RECEPTACLE

Pitch

2.54mm

Contact Resistance

10mOhm

Maks. Çalışma Sıcaklığı

75°C

Number Of Conductors

ONE

Contact Plating

Gold
