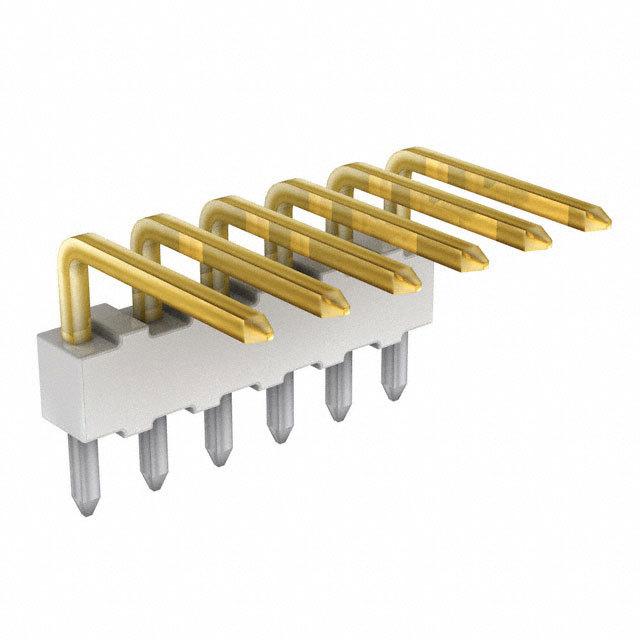

22-12-2061

Specifications

Mil Conformance

NO

Number Of Pcb Rows

1

Fabrika Tedarik Süresi

10 Weeks

Kurşunsuz Kodu

yes

Parça Durumu

Active

Contact Lengthmating

9.3726mm

Akım Değeri

4A

Sıra Sayısı

1

Body Breadth

0.248 inch

Min. Çalışma Sıcaklığı

0°C

Pozisyon Sayısı

6

Ul Flammability Code

94V-0

Halogen Free

Low Halogen

Reliability

COMMERCIAL

Mixed Contacts

NO

Insulation Resistance

50GOhm

Contact Style

SQ PIN-SKT

Contact Pattern

RECTANGULAR

Lead Pitch

2.54mm

Mating Post Length

9.37mm

Additional Feature

KK

Pcb Contact Pattern

RECTANGULAR

Uzunluk

14.99mm

ECCN Kodu

EAR99

Voltage Rated Dc

250V

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Orientation

Right Angle

Contact Gender

Male

Housing Material

Nylon

Ambalaj

Bulk

Total Number Of Contacts

6

Option

GENERAL PURPOSE

Flammability Rating

UL94 V-0

Iec Conformance

NO

Reference Standard

UL, CSA

Yayın Yılı

2009

Durability

25 Cycles

Bodyshell Style

RECEPTACLE

Pitch

2.54mm

Glow Wire Compliant

Non-compliant
