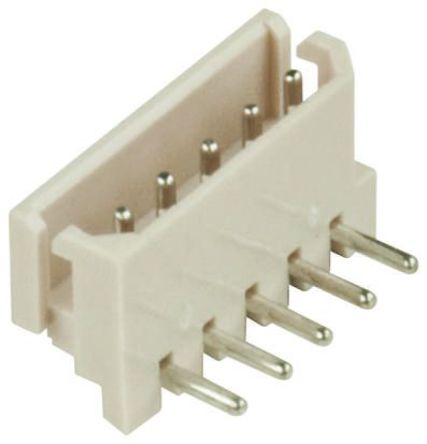

22-05-7085

Specifications

Min. Çalışma Sıcaklığı

-40°C

JESD-609 Kodu

e3

Ul Flammability Code

94V-0

Number Of Contacts

8

Sıra Sayısı

1

Akım Değeri

4A

Contact Lengthmating

3.5052mm

Wirecable Gauge

22 AWG

Number Of Pcb Rows

1

Parça Durumu

Active

Kurşunsuz Kodu

yes

Fabrika Tedarik Süresi

10 Weeks

Mil Conformance

NO

Additional Feature

POLARIZED, SHROUDED

Voltage Working

250V

Pcb Contact Pattern

RECTANGULAR

Lead Pitch

2.5mm

Contact Pattern

RECTANGULAR

Contact Style

RND PIN-SKT

Insulation Resistance

1GOhm

Voltage Rated Ac

250V

Mixed Contacts

NO

Reliability

COMMERCIAL

Durability

30 Cycles

Yayın Yılı

2005

Glow Wire Compliant

Non-compliant

Pitch

2.5mm

Bodyshell Style

RECEPTACLE

Iec Conformance

NO

Flammability Rating

UL94 V-0

Option

GENERAL PURPOSE

Reference Standard

UL, CSA

Reach Svhc

Unknown

Contact Gender

Male

Max Voltage Rating Dc

250.25kV

Orientation

Right Angle

Polarization Key

POLARIZED HOUSING

Housing Material

Nylon

ECCN Kodu

EAR99

Voltage Rated Dc

250V
