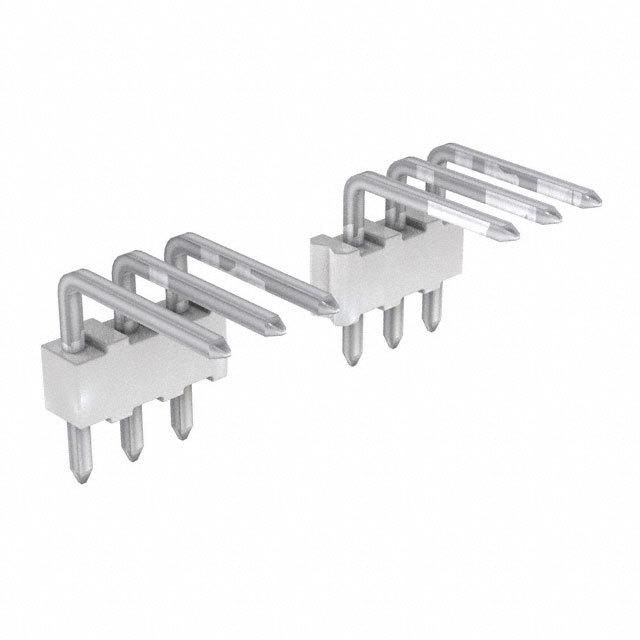

22-05-2111

Specifications

Maks. Çalışma Sıcaklığı

75°C

Pitch

2.54mm

Contact Resistance

10mOhm

Total Number Of Contacts

11

Insertion Forcemax

4.8928 N

Contact Style

SQ PIN-SKT

Number Of Conductors

ONE

Lead Pitch

2.54mm

Plating Thickness

60μin

Insulation Resistance

50GOhm

Voltage Rated Dc

250V

Durability

25 Cycles

Din Conformance

NO

Contact Pattern

RECTANGULAR

Uzunluk

27.7mm

Sıra Sayısı

1

Yayın Yılı

2011

Orientation

Right Angle

Kurşunsuz Kodu

yes

Gender

Male

Number Of Pcb Rows

1

Pcb Contact Pattern

RECTANGULAR

Connector Type

Male Pin

Fabrika Tedarik Süresi

11 Weeks

Mixed Contacts

NO

Parça Durumu

Active

Iec Conformance

NO

Terminal

Solder

Reliability

COMMERCIAL

Glow Wire Compliant

Non-compliant

Contact Materials

Brass

ECCN Kodu

EAR99

Contact Lengthmating

9.3726mm

Withdrawl Forcemin

.556 N

Yükseklik

6.3mm

Filter Feature

NO

Mil Conformance

NO

Ul Flammability Code

94V-0

Contact Plating

Tin

Body Breadth

0.094 inch
