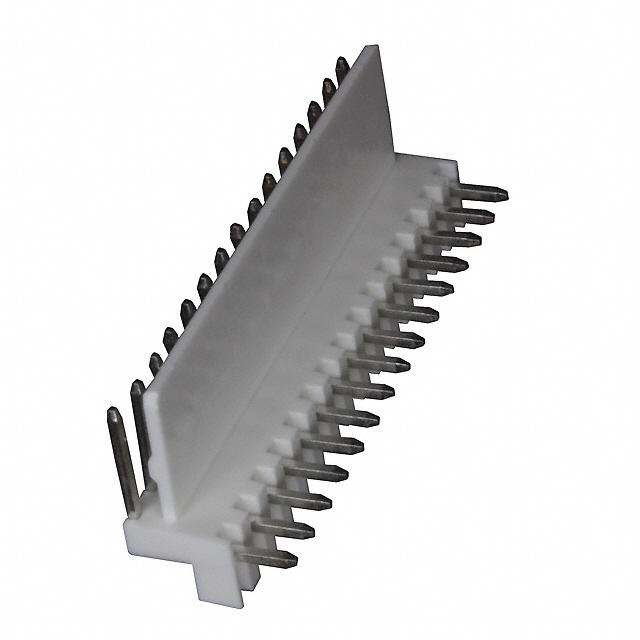

22-05-1152

Specifications

Contact Lengthmating

7.493mm

Fastening Type

Friction

Contact Style

RND PIN-SKT

Number Of Conductors

ONE

Filter Feature

NO

Mil Conformance

NO

Ul Flammability Code

94V-0

Terminal

Solder

Iec Conformance

NO

Pitch

2.5mm

Maks. Çalışma Sıcaklığı

105°C

Reliability

COMMERCIAL

Contact Materials

Brass

Glow Wire Compliant

Non-compliant

Total Number Of Contacts

15

Contact Resistance

20mOhm

Kurşunsuz

Lead Free

ECCN Kodu

EAR99

Halogen Free

Low Halogen

Pozisyon Sayısı

15

Kurşunsuz Kodu

yes

Number Of Pcb Rows

1

Connector Type

Male Pin

Fabrika Tedarik Süresi

15 Weeks

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active

Polarization Key

POLARIZED HOUSING

Mixed Contacts

NO

RoHS Durumu

RoHS Compliant

Renk

Natural

Min. Çalışma Sıcaklığı

-40°C

Akım Değeri

3A

Reference Standard

UL

Housing Material

Nylon

Contact Plating

Tin

Body Breadth

0.236 inch

Din Conformance

NO

Bodyshell Style

RECEPTACLE

Yayın Yılı

2001

Orientation

Right Angle
